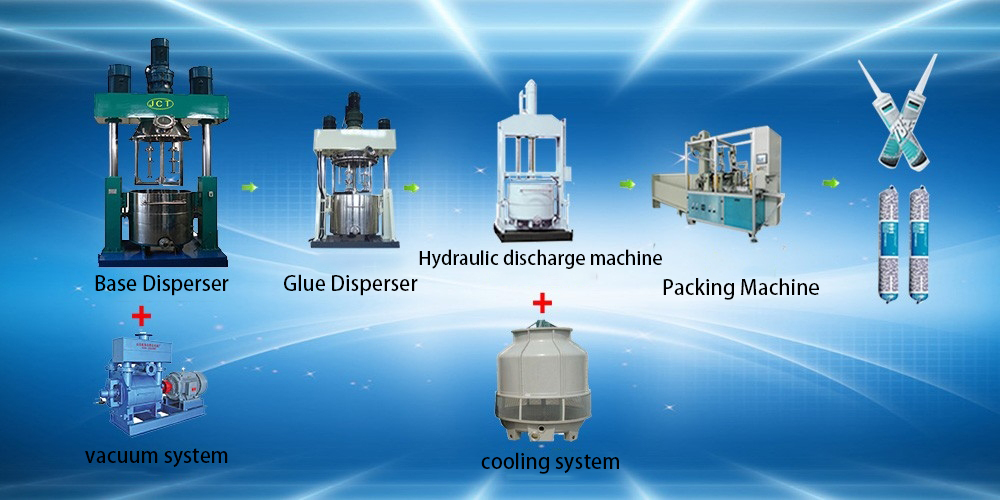

1、Production line equipment configuration:
1)Base material dispersing mixer / Vacuum kneader,
2)High viscosity pump,
3)Base storage tank,
4)Heating system( according to actual requirements)
5)Vacuum system
2、Production process:
1）Preparation of raw materials according to the formula, add to the base disperser / kneader,
powder materials can be put into the disperser for 2-3 times. Through a period of time mixing, the temperature will be raised because of the friction between the materials, to achieve full mixing effect. Start the vacuum system and draw the water from the materials.
2）The base materials will come to the base material storage tank by the high viscosity pump,
slowly adding these materials to the three roller grinding machine, to achieve the fineness requirements.
3）After grinding of the base materials, put the materials into the mixing cylinder. And then,
adding other ingredients and paste.
4）The mixing cylinder will be pushed into a multifunctional dispersing machine, starting
stirring and high-speed dispersing. At the same time, starting the vacuum system, drawing out the moisture and air from the materials. Start the cooling system to control the temperature of the materials.
5）After the production is finished, the mixing cylinder is pushed into the hydraulic
discharging machine, and materials are transported to a material cylinder of the packaging machine;
6）Putting the bucket into the packaging machine and then filling.
7）Packing the finished products into the warehouse.
3、Production line specifications:
1)30-60 tons / month silicone rubber production line;
2)60-120 tons / month silicone rubber production line;
3)120-360 tons / month silicone rubber production line;
4)150-450 tons / month silicone rubber production line;
5)300-600 tons / month silicone rubber production line;
4、Note:
1）If you need detailed equipment configuration, you can contact us:
http://www.nhjct.cn/ 0086-18028192316
2）We can design it according to customer’s requirements;
3）According to customer demand, we can provide production equipment, production
technology, raw materials and equipment installation, debugging and so on.
5、Device pictures (part)

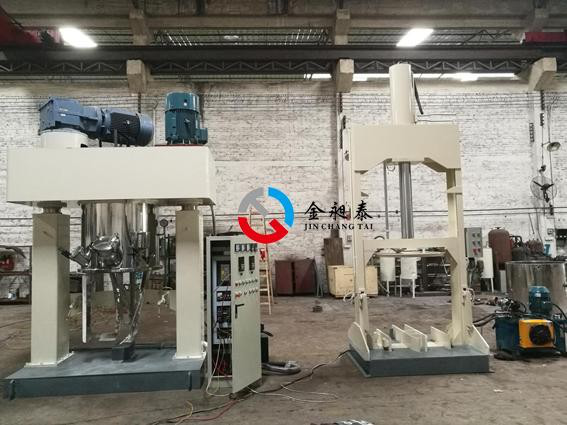

1.Basic material production equipment

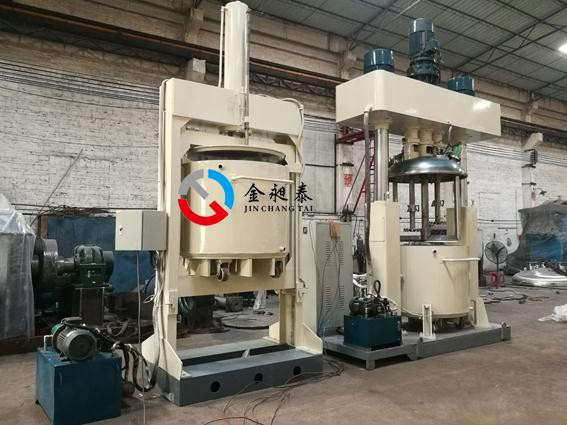

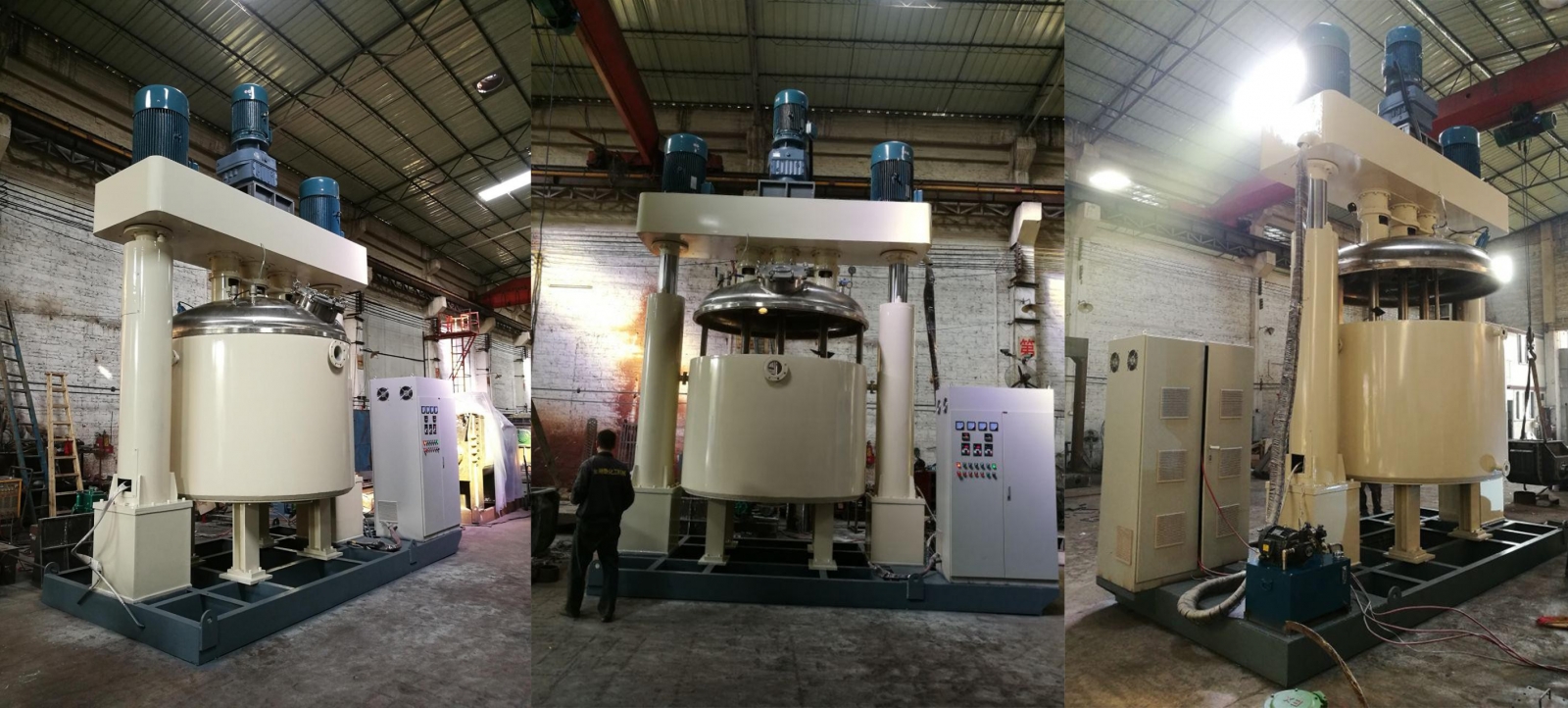

2.Silicone sealant production equipment

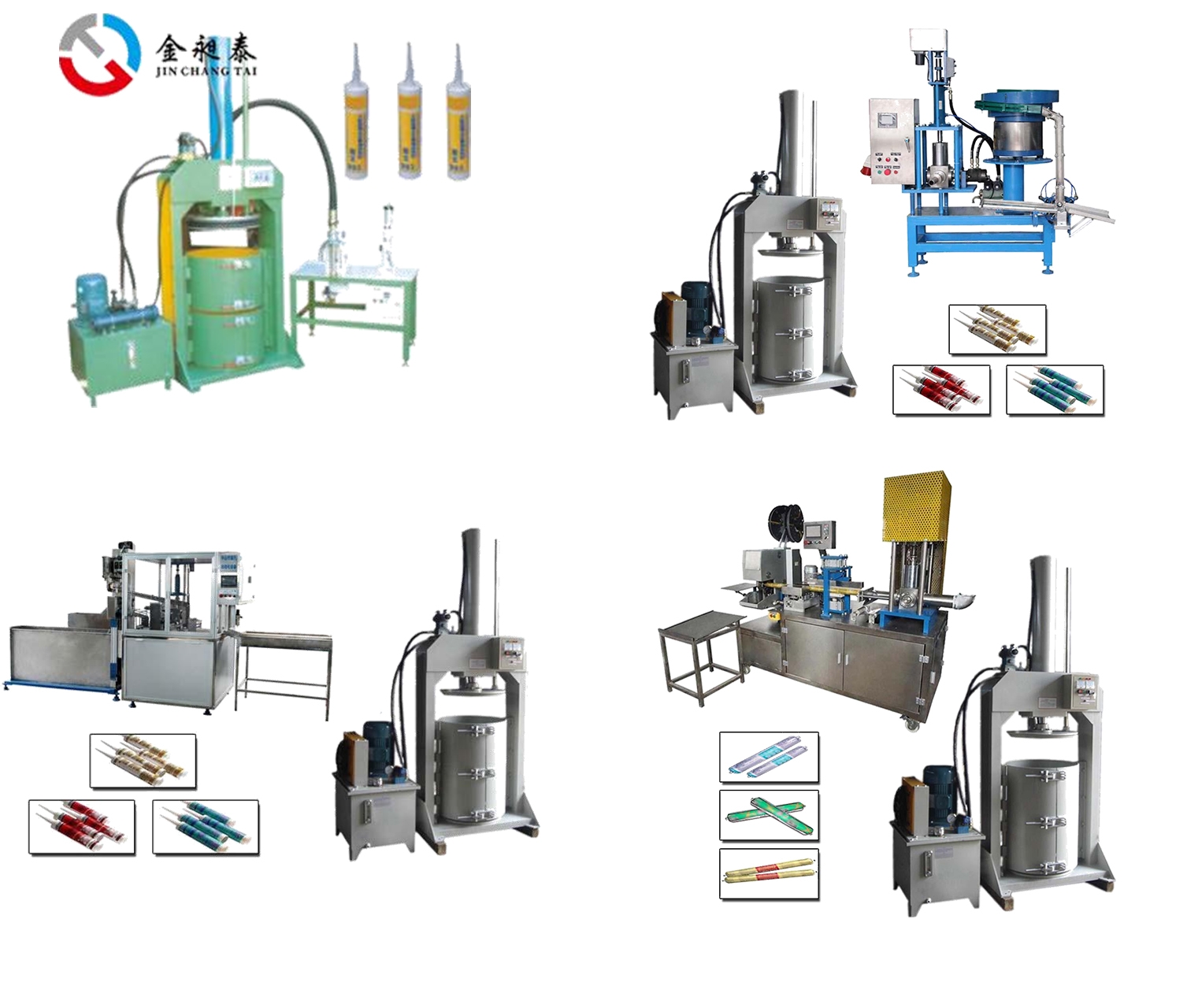

3.Silicone sealant filling equipment.
Silicone glass glue is widely used in joint sealing of glass curtain wall, door and window, bathroom, tile or stone, and is widely used in the construction industry.

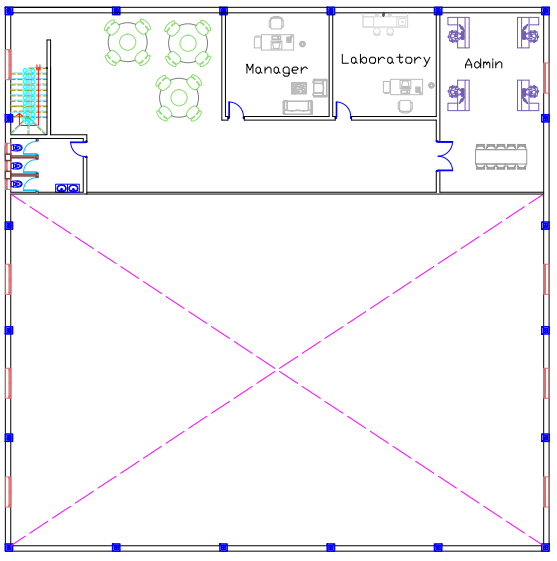

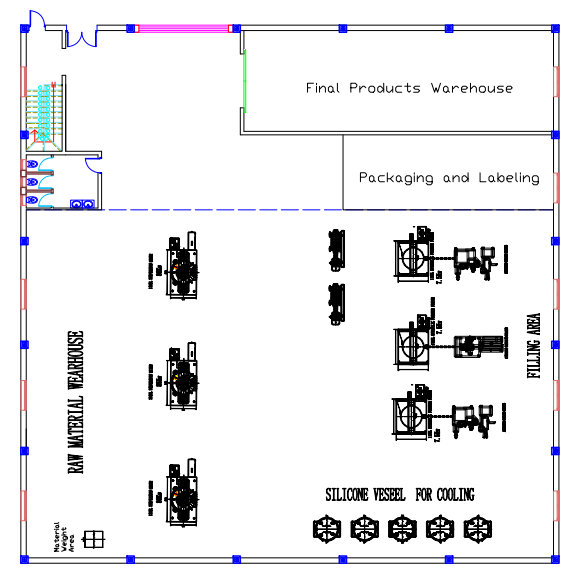

Plant planing :
1.30-60 tons / month silicone rubber production line;
2.60-120 tons / month silicone rubber production line;
3.120-360 tons / month silicone rubber production line;
4.150-450 tons / month silicone rubber production line;
5.300-600 tons / month silicone rubber production line
Contact information:
If you need to know the detailed equipment configuration, production technology, production
process, please contact us.
Email：[email protected]
Mobile: 0086-181 3837 3963(WhatsApp, Wechat)
Address: Donglian Jincheng Industrial Zone, Danzao Town, Nanhai, Foshan, Guangdong, China.
