Latest Design Gel Cosmetic Creams Liquid Mixing Tank

1.Introduction:

Reactor is the main chemical reaction of the typical production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production. To break down or combined the materials through mixing, filling and cooling, to promote the reaction of polymerization. The reactor consists of body, gears, mixing devices, heating devices, cooling devices, seal composition and some corresponding auxiliary equipment: distillation column, condenser, water separator, collecting cans, filters ect. It\'s the practical and effective equipment.

2. used in the production:

1). Unsaturated resin, alkyd resin, acrylic resin, curing agent and complete sets of production equipment.

2). Emulsion, white latex, water-based polyurethane, water-based glue sets of production equipment.

3). 107 rubber, silicone oil, and other sets of production equipment, hot melt adhesive.

4). Complete sets of hot melt production equipment.

5). PU glue, adhesive, grafted gum syrup glue sets of productin equipment.

6). Waste silicone cracking , distillation, recycling sets of production equipment.

7). Dispersion paints, coatings, stirring and mixing equipment.

8). Complete sets of raw rubber production equipment.

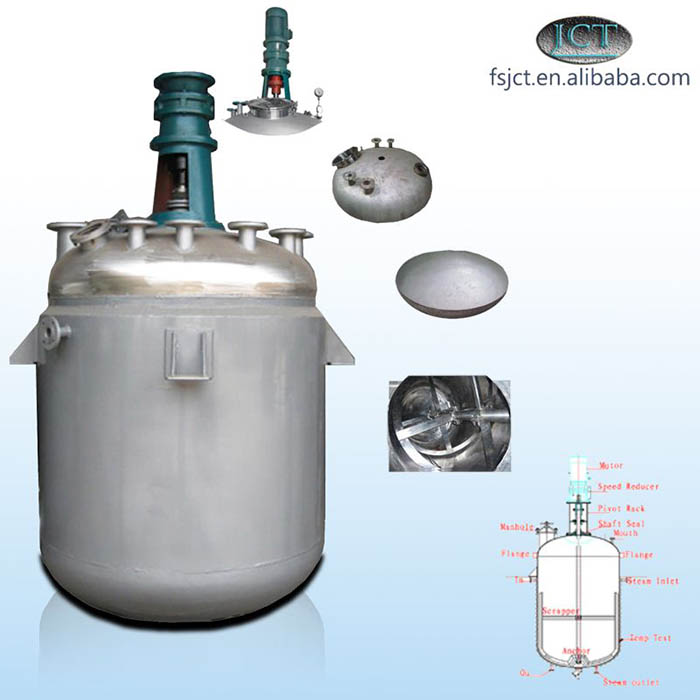

3. pictures of reactor and its products:

Latest Design Gel Cosmetic Creams Liquid Mixing Tank

4. Parameter of reactor:

Specifications	Effective volume(L)	Heating	Heating(colding)structure	Shaftseals	Materialwithin thecylinder	Remarks
FYF-50L	50	HTF Electric heating Steam Hot water	Jacket Outside the half-pipe The coil	Single mechanical seal Double mechanical seal Packing	SS304 SS316 Q235	1. the motor power size, stirring speed level determined according to actual requirements. 2. the thickness of the cylinder pressure to be based on response.
FYF-100L	100
FYF-200L	200
FYF-300L	300
FYF-500L	500
FYF-1000L	1000
FYF-1500L	1500
FYF-2000L	2000
FYF-2500L	2500
FYF-3000L	3000
FYF-4000L	4000
FYF-5000L	5000
FYF-6000L	6000
FYF-8000L	8000
FYF-10000L	10000
FYF-12000L	12000
FYF-16000L	16000
FYF-20000L	20000
FYF-25000L	25000
FYF-30000L	300000
