Making Machine Butyl Rubber Sealing Clay Glue Headlight Sealant_PRODUCTS_reactor | jacketed reactor | stainless steel reactor

1). China Foshan JCT Machinery Co., Ltd.

2). A professional chemical machinery manufacturer.

3). Specialize in reaction vessels, kneading machine, dispersion mixers, planetary mixers, powder mixers, high speed dispersers.

4). Set up at 2005, now with a 50-technician, 10-senior-engineers and 2-specialists designing & manufacturing team, and 15-sales team.

5). Main markets: Chian, Europe, Africa, South America and South Asia.

mixing machine

1). Kneading machine does very well in mixing, kneading, crushing and dispersing for high-viscosity liquid materials, with no dead point.

2). Two sigma or Z-type blades.

3). Equipped with inverter for frequency control.

4). Vacuum and high pressure are available.

5). The cylinder is opened hydraulically.

6). Discharge mode: Hydraulic tilting, Bottom pumping,or Screwing.

7). With jacket outside of the cylinder, for heating or cooling.

8). Heating mode: Hot oil, Electric or Steam.

9). All the parts that contact with material are made of stainless steel.

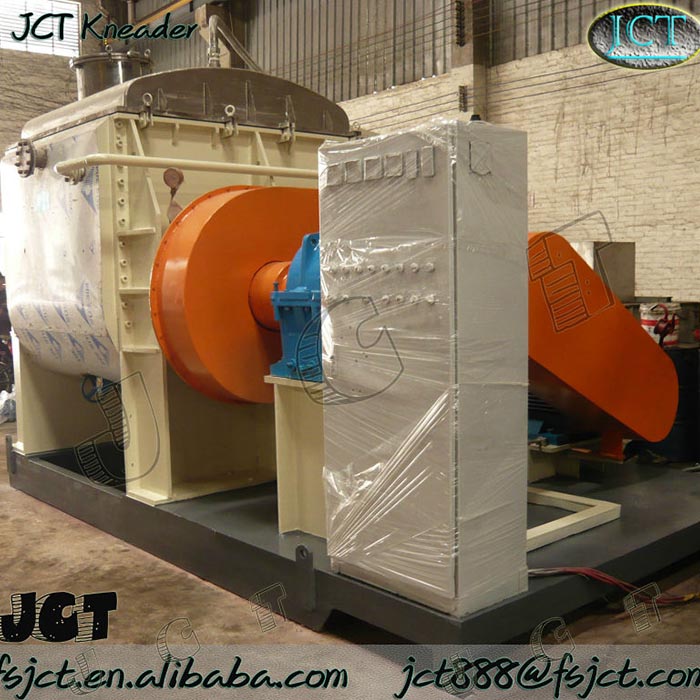

Jaceted Heating Vacuum Kneading Machine (NHZ-600)

Model	Chamber Volum(L)		Drive motor power (KW)	Mixing Speed (rpm)	Discharge mode			Heating
Model	Full volume	Feeding amount	Drive motor power (KW)	Paddle fast / slow paddle	Optional parameters			Optional parameters
NHZ-5	5	3	2.2-4	75/50	Manual / Hydraulic tilting			Running Hot oil	Electrical heating	Pressure Steam
NHZ-20	20	12	3-5.5	63/42
NHZ-50	50	30	4-7.5	63/42
NHZ-100	100	60	5.5-7.5	43/29
NHZ-200	200	120	7.5-15	43/29	Hydraulic tilting	The bottom pumping	Screw extruding
NHZ-300	300	180	11-18.5	43/29
NHZ-500	500	300	18.5-30	43/29
NHZ-1000	1000	600	22-55	32/22
NHZ-1500	1500	900	30-90	32/22
NHZ-2000	2000	1200	45-110	32/22
NHZ-3000	3000	1800	55-130	33/22
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Inverter for frequency control if necessory.

Chewing gum base kneading, rubber base kneading, DOW Corning, sealant,Silicone sealant, adhesive, ink, dope, pigment, dye, carbon, CMC, cosmetic, foodstuff, battery, medicine, plastic and other viscosity fluid etc. Vacuum kneading machines.
