5L Laboratory Double Shaft Planetary Mixer | JCT Machinery

Maint Feature of JCT Machinery 5L Laboratory Double Shaft Planetary Mixer

1. Planetary Stirring Mechanism

Double Planetary Stirring Paddle: The stirring paddle revolves around the stirring tank while ratating, ensuring that the materials are evenly mixed without dead angles.

Efficient Mixing: JCT Machinery 5L laboratory double shaft planetary mixer can handle high viscosity and high solid content materials to achieve efficient and uniform mixing and dispersion.

2. Pressurization Function

Pressure Operation: JCT Machinery 5L laboratory double shaft planetary mixer can mix and knead under a certain pressure, which is suiable for materials that need to react or degas under high pressure.

Airtight Design: Ensure that the equipment operates safely and reliably under pressurized conditions to prevent material leakage.

3. Vacuum Function

Vacuum Degassing: It can be operated under vacuum to remove bubbles in the mimxture and ensure the density and uniformity of the product.

Vacuum Sealing: Ensure that the equipment operates stably under vacuum conditiions and effictively prevent air from entering.

4. Temperature Control

Heating and Cooling Jacket: The stirring tank is heated or cooled by the jacket system to ensure that the materials are mixed and reacted within a suitable temperature range.

Accurate Temperature Control: Equipped with temperature sensors and control systems to achieve accurate temperature control.

5. Visual Operation

Observation Window: With observation window or transparent cover, convenient for real-time monittoring of material mixing state and reaction process.

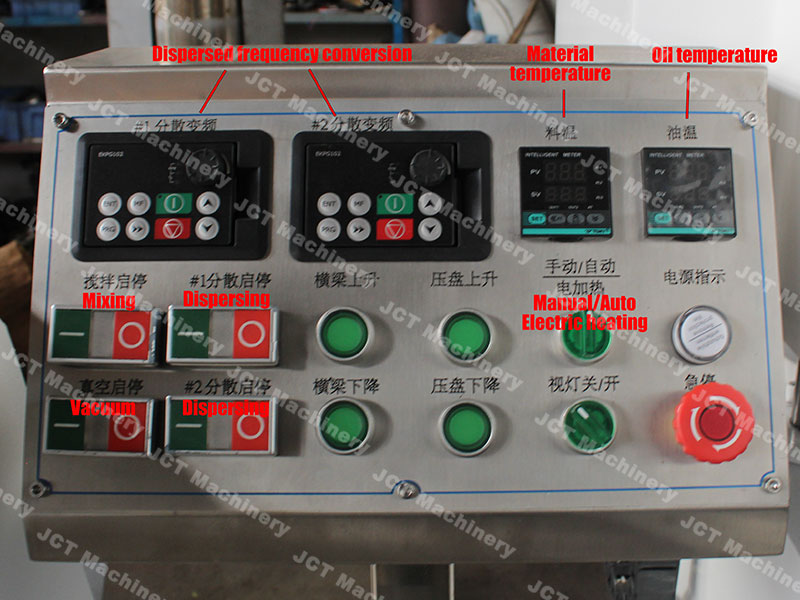

Control Panel: Equipped wih human-machine interface or control panel, easy to operate, intuitive parameter setting and monitoring.

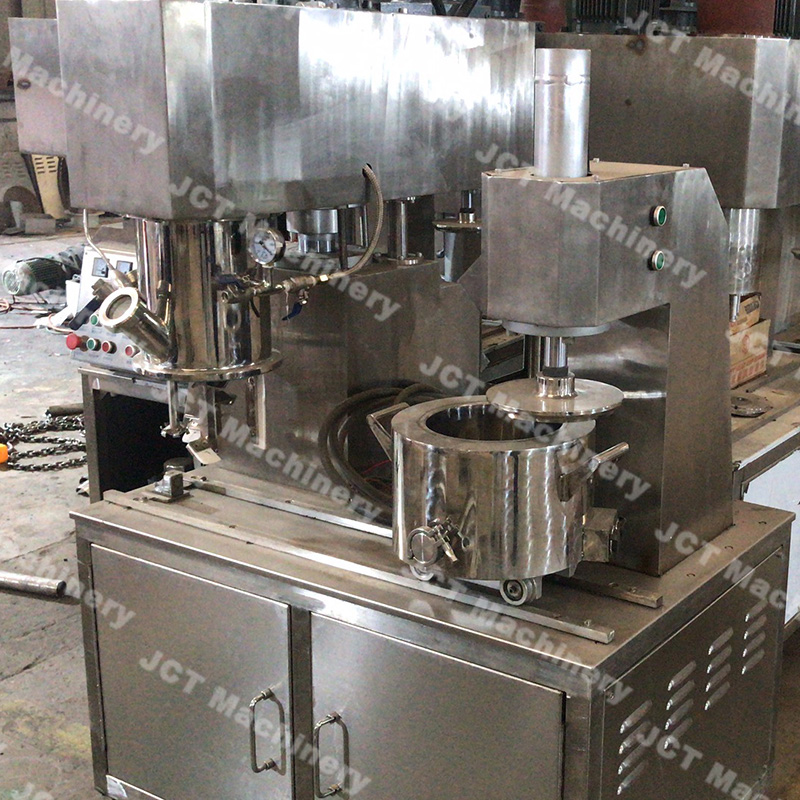

JCT Machinery 5L laboratory double shaft planetary mixer is equipped with a pressure machine. When the mixing is finished, we can push the mixing tank directly under the press machine along the track. The discharge is convenient and fast, saving site space.

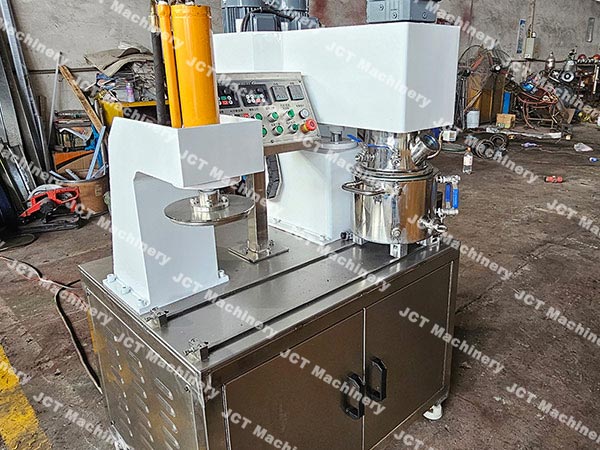

JCT Machinery 5L Laboratory Double Shaft Planetary Mixer

Model: DLH-5

Full Volume: 5L

Working Volume: 4L

Motor Power: 1.1kW *2

Planetary  Revolution Mixing Speed: 0-60rpm

Low Speed Autorotation Mixing Speed: 0-120rpm

High Speed Dispersiion Mixing Speed: 0-1000 (1500)rpm

**Design according to customers actual need.
