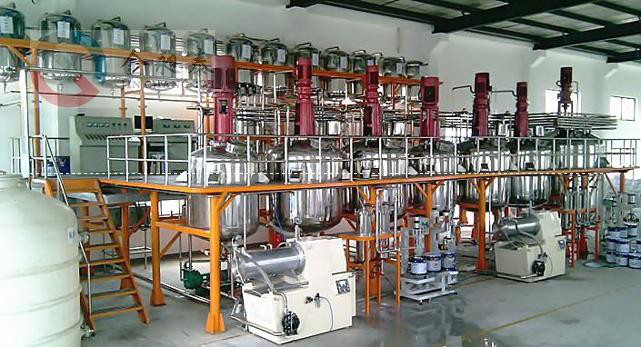

Paint production line

1. Integrated production line equipment configuration(equipment size, quantity according to the quantity of production):
1)High speed machine
2)Horizontal sand mill cv
3)vacuum system
4)Paint mixing kettle
5)Fast open bag filter,
6)Paints filling machine

The specific configuration is based on the actual needs

2.Production process:
A, the main features:
The equipment can independently complete the dispersing and grinding, refining, cooling, filtering, vacuum suction, semi automatic filling the whole process, greatly reduce the labor intensity, the production time is the traditional equipment consuming 1 / 5, shortening the processing time, and easy cleaning. The utility model can be operated in a vacuum state, with no bubble production, no dust flying, and the quality of products is greatly improved.

B, Process
1)Pulp part:
The solvent through the liquid metering device is added to the liquid material groove, by vacuum suction to emulsifying kettle, start low speed anchor mixer, the powder material is sucked into the vacuum emulsifying tank for continuous stirred 10 minutes, then turn on the two sets of vertical high shear emulsifying 10 minutes, finally use horizontal emulsion machine, continuous cycle 30 minutes, finished slurry. A high shear inside the tank and an emulsion pump outside the tank are also used,
Ensure further refinement of materials, and greatly shorten the operation time.
2)paint part:
By vacuum, resin, film-forming agent from the liquid tank into the low-speed stirred tank, slurry through the bag filter is sucked into the low-speed mixer, the emulsion or solvent, additives, slurry mixing, then adding additives (thickener), blending paint.
3)filter packing:
After a good tune paint, vacuum defoaming after 5 minutes, stirring was stopped by a bag filter coating to semi-automatic filling machine for packaging. When the coating material using a two bag filters, can be switched with each use, does not affect the filling speed.

Coating is a kind of material, which can be coated on the surface of the object with different construction processes to form a solid film with firm adhesion, certain strength and continuity.

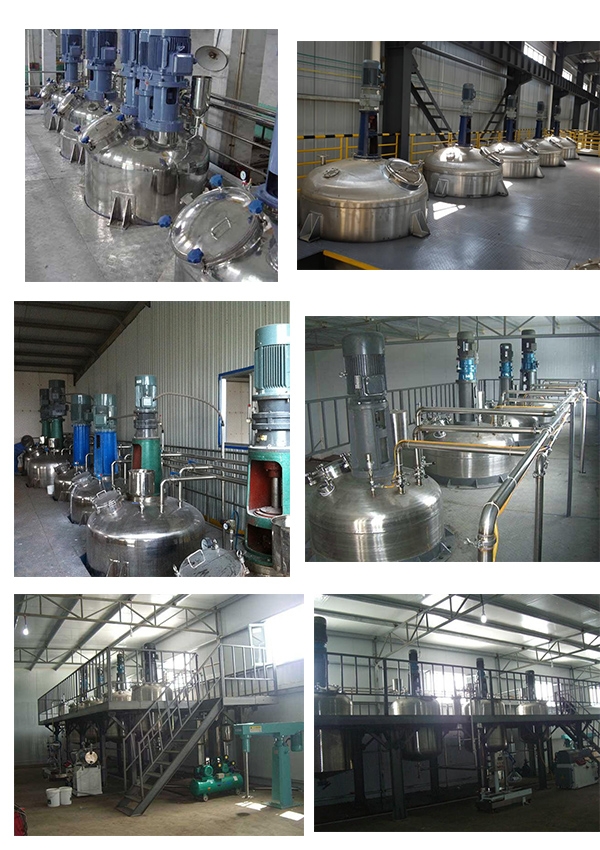

1、Production line characteristic

1) JCT mechanical equipment Co., Ltd. is a research, development, design, manufacture, installation, debugging in one of the chemical machinery and equipment manufacturers, Have experience in design and manufacture of paint production equipment more than 15 years.

2）Paint equipment produced by JCT company,Well made,Reasonable structure,Easy to operate,It is suitable for producing all kinds of solvent - based paint and water - based coatings.

1）1-5 tons / day paint production line;
2）5-10 tons /day paint production line;
3）10-20 tons / day paint production line;
4）20-50 tons / day paint production line;
5）It can be designed according to the actual needs.

Contact information:

If you need to know the detailed equipment configuration, production technology, production
process, please contact us.
