JCT paint production line

1.The Introduction of chemical reactor for water-based paint and oil-based paint making:

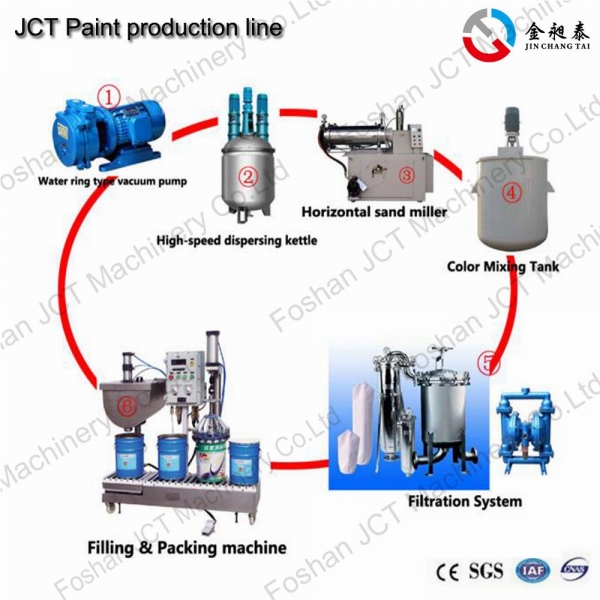

The whole paint production include: prepare, mixing, grinding, coloring, filtering and packing. The specific process is listed by the following:

A. Preparing: use the Water ring type vacuum pump to suck the raw material into the chemical reactor, which can reduce manual work.

B. Mixing: put the raw material into the High-speed dispersing kettle, after mixing, you can get the semi-finished paint;

C. Grinding: put the semi-finished paint into the Pipeline emulsifying machine(for water-based paint) or Horizontal sand miller(for oil-based paint) to grind the granule(residued from the semi-finished paint) into small particles, for the better stirring. If your water-based paint don\'t need to be grinded, this grinding part can be removed;

D. Coloring: put the semi-finished paint into the Color mixing tank, add some pigments or other additives into it to make other colors for the paint. If the paint need to be diluted, it can be finished in this tank.

E. Filtering: after preparing, mixing, grinding and coloring, it need to be filtered by the filter, to get high-quality paint;

F. Packing: after filtering, the paint will be filled and packed by the packing machine automatically, and finally, you can get the paint in barrels.

2.Attention:

A. Water-based paint and Oil-based paint can not be made in the same production line. Because oil-based paint must be made in a non-water working environment, and if made in the same production line, it will be very hard for you to do the cleaning job.

B. These two paint production line will take about 5 hours for the first time, and then it can make the paint continuely, and it will take about 1- 2 hours from the second time for paint making.

C. These two production line are suitable for the production below 3 tons/ day, and if you want to make larger production of paint, you can refer to our High-speed dispersing kettle equipment below.

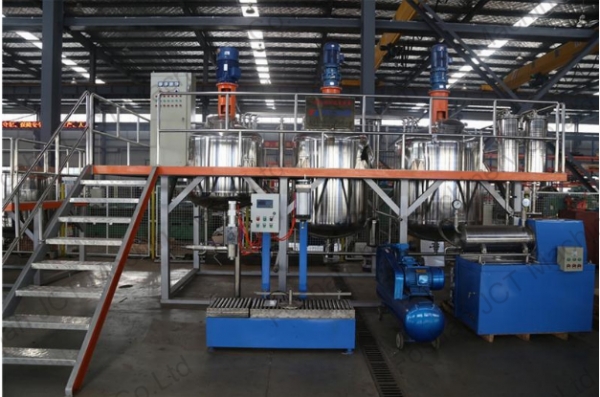

3.Some pictures of chemical reactor:

The technical parameter of chemical reactor:
