paint production line | Industrial paint manufacturing process

industrial paint manufacturing process

1. The Introduction of High-speed disperser equipments for water-based paint and oil-based paint making:

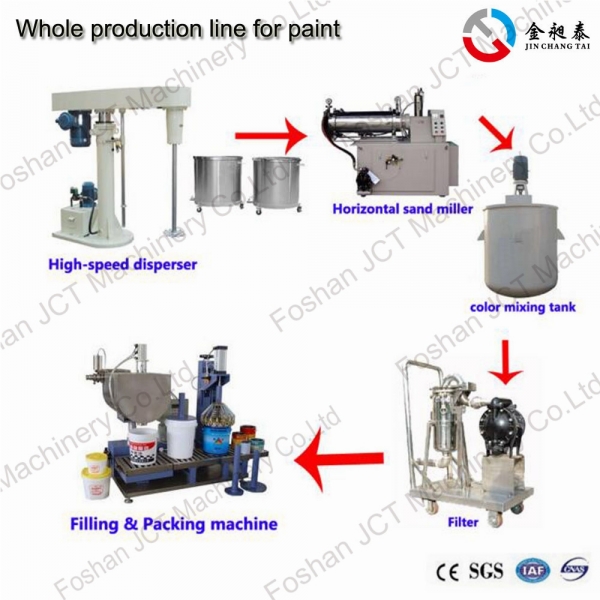

The whole production include: mixing, grinding, coloring, filtering and packing. The specific process is listed by the following:

industrial paint manufacturing process industrial paint manufacturing process industrial paint manufacturing process

A. Mixing: put the raw material into the High-speed disperser, stir about 1 hours, you can get the semi-finished paint;

paint production machines paint production machine paint production machines paint production machine

B. Grinding: put the semi-finished paint into the Horizontal sand miller to grind the granule(residued from the semi-finished paint) into small particles, for the better stirring. If you want to make high-quality water-based paint, it\'s better to use Pipeline emulsifying machine. If your water-based paint don\'t need to be grinded, this grinding part can be removed;

industrial paint manufacturing process industrial paint manufacturing process industrial paint manufacturing process

C. Coloring: put the semi-finished paint into the Color mixing tank, add some pigments or other additives into it to make other colors for the paint. If the paint need to be diluted, it can be finished in this tank.

D. Filtering: after mixing, grinding and coloring, it need to be filtered by the filter, to get high-quality paint;

E. Packing: after filtering, the paint will be filled and packed by the packing machine automatically, and finally, you can get the paint in barrels.

paint production machines

2.Attention:

A. Water-based paint and Oil-based paint can not be made in the same production line. Because oil-based paint must be made in a non-water working environment, and if made in the same production line, it will be very hard for you to do the cleaning job.

B. These two paint production line will take about 5 hours for the first time, and then it can make the paint continuely, and it will take about 1- 2 hours from the second time for paint making.

C. These two production line are suitable for the production below 3 tons/ day, and if you want to make larger production of paint, you can refer to our High-speed dispersing kettle equipment below.

3.Some pictures of high speed dispersing machine:

paint production machine
