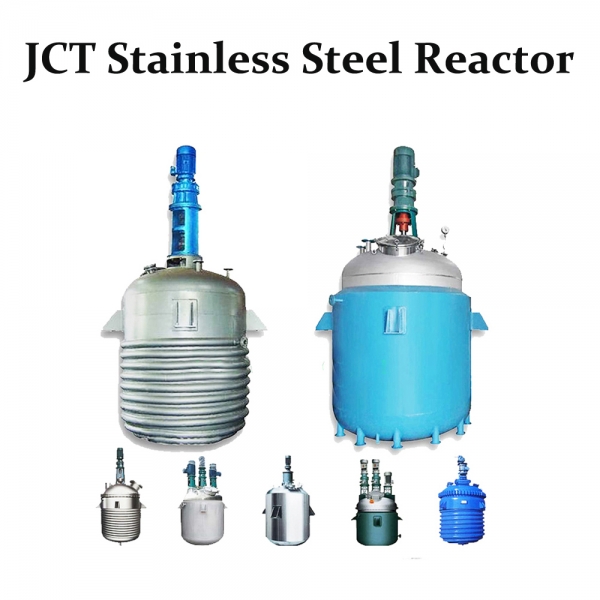

The Industrial reactors for hot melt glue

A. Equipment introduction:

1). Special equipment for chemicals mixing and reacting.

2). Widely used in producing resins, adhesives, paints, cosmetics, pharmaceuticals and other chemical productions.

3). Mechanical seal, spherical heads sealing or flange heads.

4). With jacket type of coil-pipe type.

5). Vacuum and high pressure are available.

6). Heated by oil/ water/ steam/ electric, temperature range: 0 - 500 centigrade.

7). Different mixing blades style (can be made as special requirement).

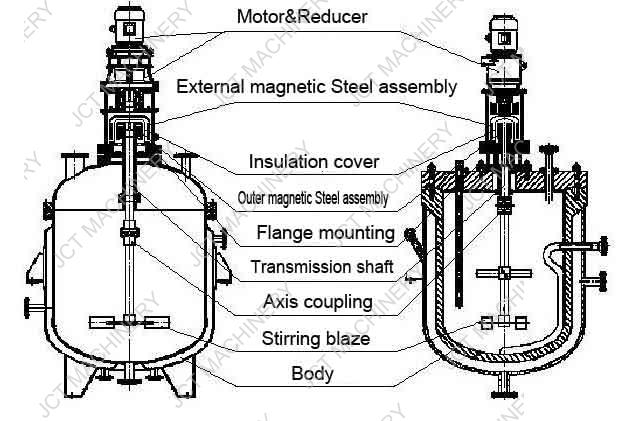

8). Consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.

9). Equipped with distillation column, condenser, water separator, collecting cans, filters ect.

10). Supply complete production line, as well as producing technology.

reactor

B. How to select the appropriate machine:

Take a example by the FYF-1000

FYF means the reactor kettle series(mainly for liquid, solvent making industry), 1000 means the design volume is 1000liters. The effect volume is about 80% of the tank, that means 800 liters/batch.

The daily production capacity depends on the reacting time.

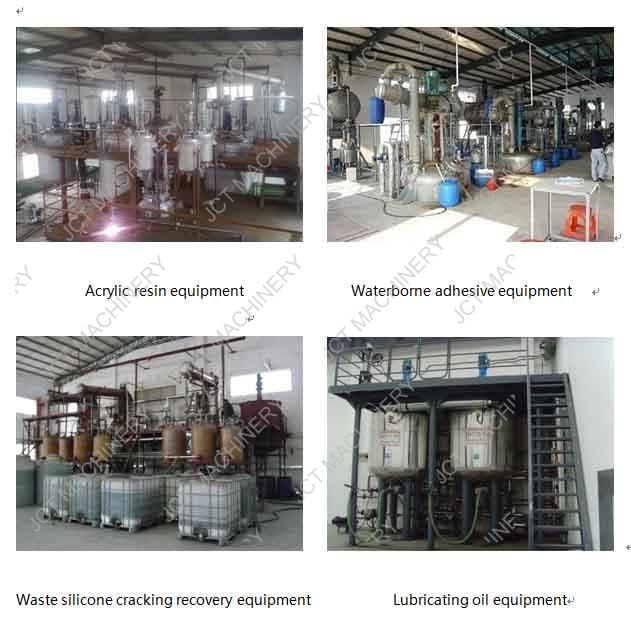

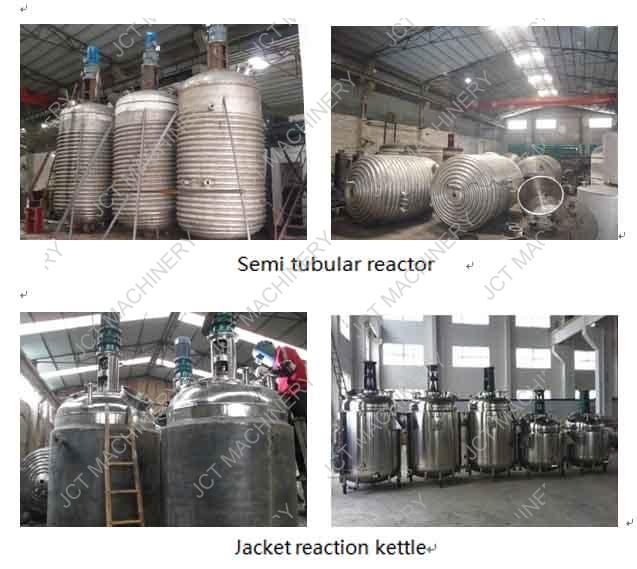

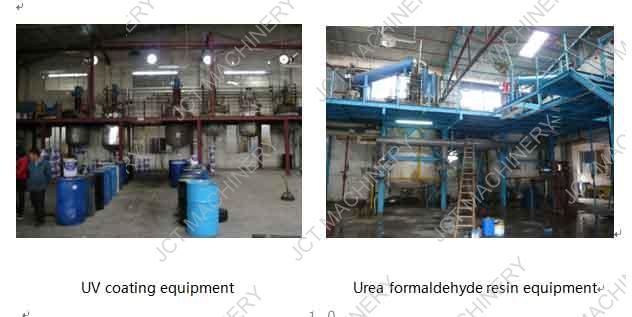

C. Some pictures of reactor production:

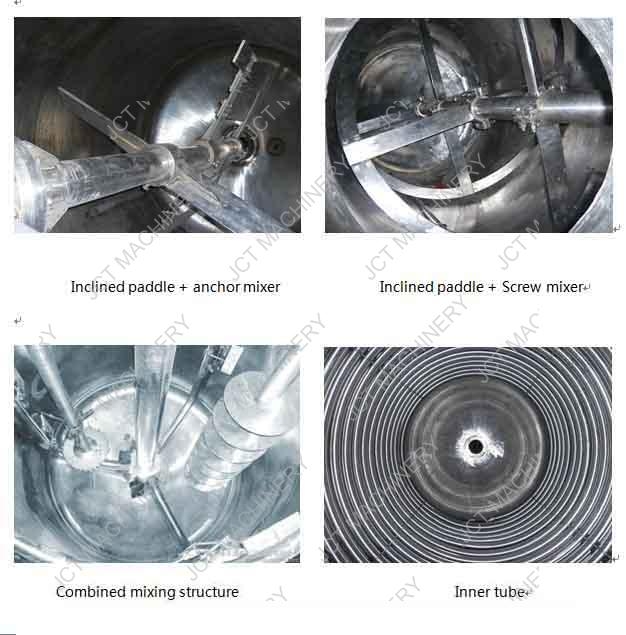

D. The Stirring blades of reactors:

E. Sets of Equipment

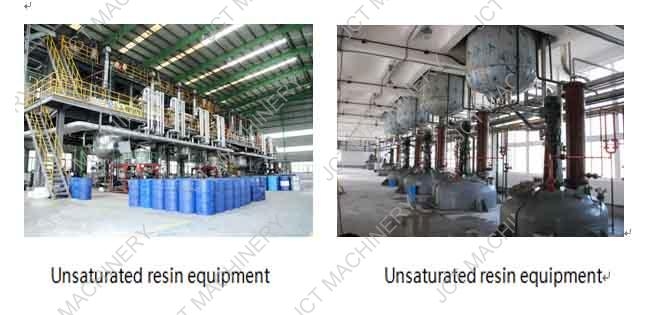

1. Unsaturated polyester resin, alkyd, polyester powder coating, curing agent and other

complete sets of production equipment

2.Complete sets of production equipment, such as acrylic resin, phenolic resin, epoxy resin,

3.Amino resin, polyurethane resin, PVC resin complete set of production equipment

4.Complete sets of production equipment, such as polyacrylic emulsion , white latex,

waterborne polyurethane, printing and dyeing auxiliaries

5.Silicone resin, silicone oil and other complete sets of production equipment

6.Complete equipment for production of hot melt adhesive

7. Solvent type PU rubber, chloroprene rubber, adhesive, PVC adhesive, urea formaldehyde

glue, such as complete sets of production equipment

8.Waste silica gel cracking, distillation, recovery of complete sets of production equipment

9. Paint, ink dispersion, mixing, mixing equipment

F. Company introduction:

1). Profession:
We have focused on this area for over 10 years, and the boss of JCT is a professional engineer who has 20 years' experience in what we are concentrating on mixing tank.

2). Powerful team:
A 5-experienced-engineer designing team + a 35-skilled-technician team + a 10-passionate-sales team make up the JCT big team.

3). Achievement
JCT was set up at 2004, through over 18 years' endeavor, our products has been sold to most important industrial district in China, such as Guangdong, Shandong, Jiangsu, Zhejiang, Fujian and so on. And we have edged ourselves into the top5 in China.
From 2009, JCT started the international marketing. Now, we have set our feet in North America, Europe, South Aria, Africa etc.

JCT Machinery Co.,ltd, your best choice!

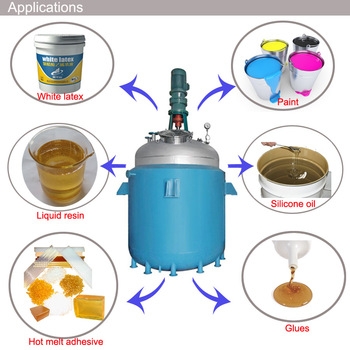

JCT chemical reactor applies for:

1). Resin:

Alkyd resin, epoxy resin, phenolic resin, acrylic resin...

2). Glue/ Adhesive:

Hot melt glue/ adhesive, grafted glue, white glue, silicone glue, all-purpose glue, PVC glue, PVA...

3). Others:

Paint, pigment, PVC, PVA, PVAC, PU, acrylic acid, and other latex, emulsion and liquid glue and adhesives.

1）Equipment volume: 20-50000L (volume in accordance with the requirements of the

design.)

2 ) Reaction temperature : -20℃~300℃。

3 ) Reaction pressure -0.1~1.6Mpa.

4 ) Equipment Material : SS304 , SS321 , SS316L stainless steel ; Q235-B carbon steel.

5 ) Mixing type: blade type, anchor type, frame type, screw belt type, turbine type,

dispersing disc type, combination type and so on.

6 ) Heating method: the heat conduction oil circulation heating, Electric heating in jacket，

steam heating, hot water heating.

7) Transfer structure: the outer jacket, the outer half tube, inner tube.
