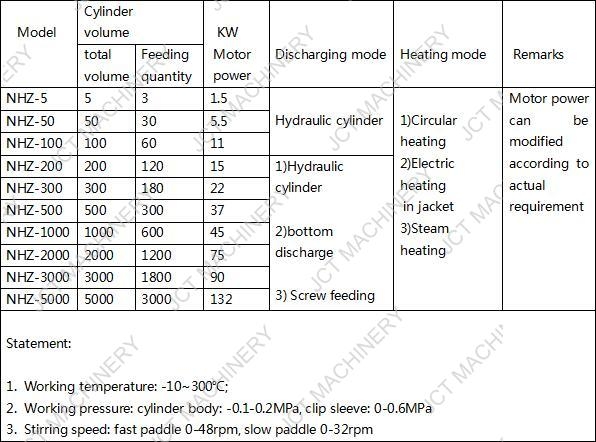

Technical Parameters

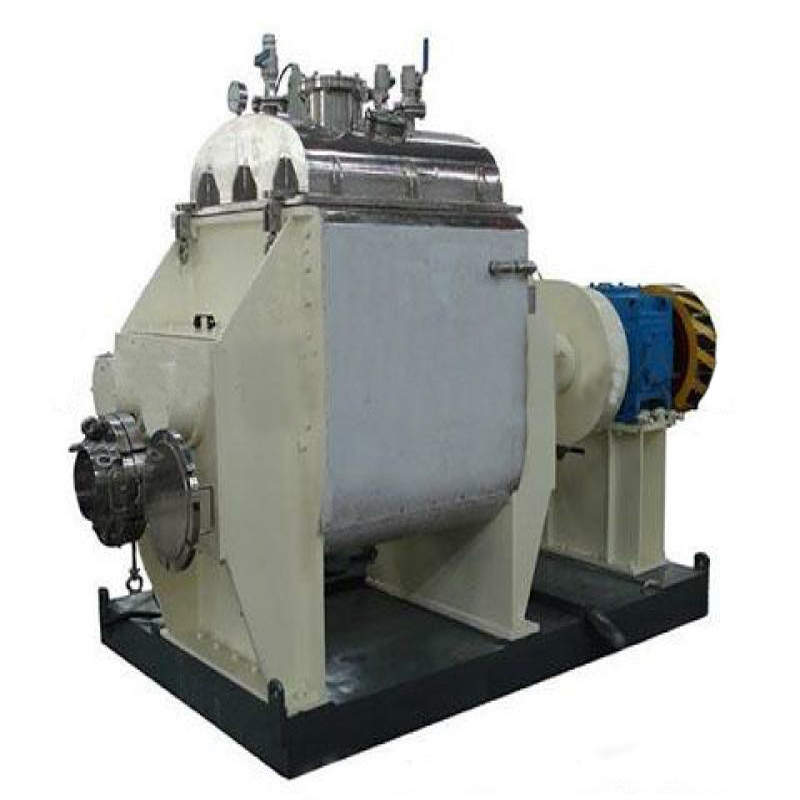

A sigma blade mixer, also known as a sigma mixer or z blade mixer, is a type of industrial mixing equipment designed for the thorough mixing, kneading, and blending of high-viscosity and high-consistency materials.

sigma blade mixer

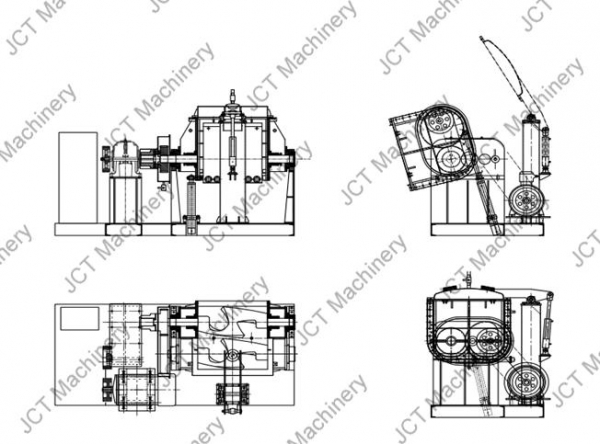

Main Structure:
• Mixing Chamber
• Agitator
• Motor
• Jacket
• Feed and Discharge Ports
• Control System
• Base

Working principle:
• Feeding: Raw materials and ingredients are added to the mixing chamber of the sigma blade mixer, usually through the feeding port.

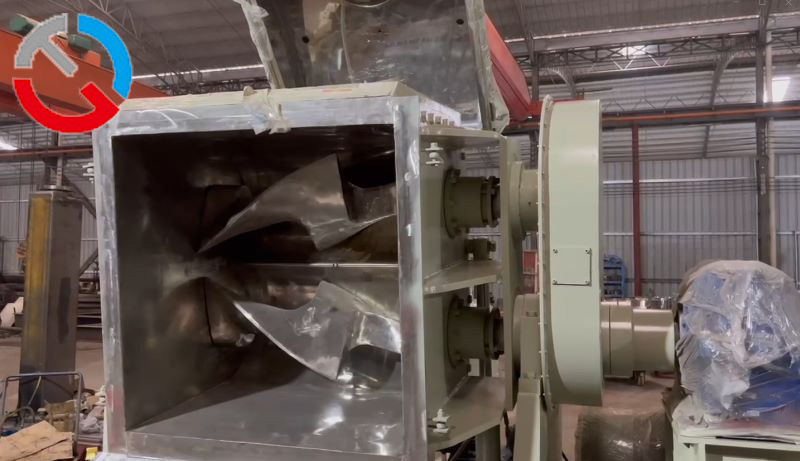

• Kneading and mixing: The double-helix blades of the sigma blade mixer rotate with each other. This movement causes the material to be continuously folded, stretched and compressed, which contributes to the uniform mixing and kneading of the mixture.
• Jacket temperature control: If the mixture requires temperature conditions, the sigma blade mixer jacket comes into play. A jacket usually surrounds the mixing chamber and can control the temperature of the mixture through external heating or cooling.
• End of mixing and discharge: Once mixing reaches the desired level, the mixture can be discharged through the discharge port.

Application:
• Food proccessing
• Rubber product manufacturing
• Plastic processing
• Building materials

sigma blade mixers

Company Introduction:

Foshan JCT machinery Co., Ltd. is the leading company which specialize in manufacturing the mixers & reactors.The company is located in the center of Nanhai District, Foshan city which is only 1 hour driving to the Guangzhou Baiyun airport.Founded in 2005,the company has a 4,000 sqm factory & an independent office building. Besides,the engineer devoted over 20 years designing & manufacturing the machines.
