A.Hot melt glue sticks production line characteristic：
1）The hot melt glue production line of our company uses reaction kettle and extruder machinery. It can use to make all kinds of stick hot melt adhesive, with good mixing effect,quality stable, stick adhesive uniformity,product bright and transparency is very good.
2）It can manufacture with large capacity machinery and 24 hours of continuous manufacture. High quantity and high efficiency.
3）Raw material can be fully mixed and fully plasticized in the reaction kettle, to sure the quality of the adhesive. Reaction kettle can be used to produce various requirements and high quality hot melt adhesive
B.The configuration of Hot melt glue sticks production line （Machinery size and quantity according the output to design）
1）Melt reaction kettle 1set
2）Material storage kettle 1set
3）High viscosity discharge pump 1set
4）Filter system 1 set
5) other
C. Production proccess of Hot melt glue sticks production line (production technology)
1）According the formula to weighing the raw material, and then adding into the reaction kettle,heating to melt raw material,fully mixing.
2）Moving the melted raw material into the filter,and the into the material storage kettle, cooling the material into a certain temperature,and maintain the temperature
3）Moving the storage kettle material into extruder . According the type of the adhesive to choose the extruder speed
(welcome to get more information in Foshan JCT Machinery Co.,Ltd)
JCT hot melt adhesive application:
1) Package: carton boxes, food packaging;
2) Hygiene products: diapers, sanitary napkins and so on.
3) Binding books: books wireless binding;
4) Wood furniture: plywood, wooden floor mosaic, furniture stick;
5) Automotive: lights, glass, filter device, interior, etc;
6) Textile products: adhesive, printing, adhesive;
7) Reflective material: traffic signs, warning protective clothing.
The structure of hot melt glue sticks machine:

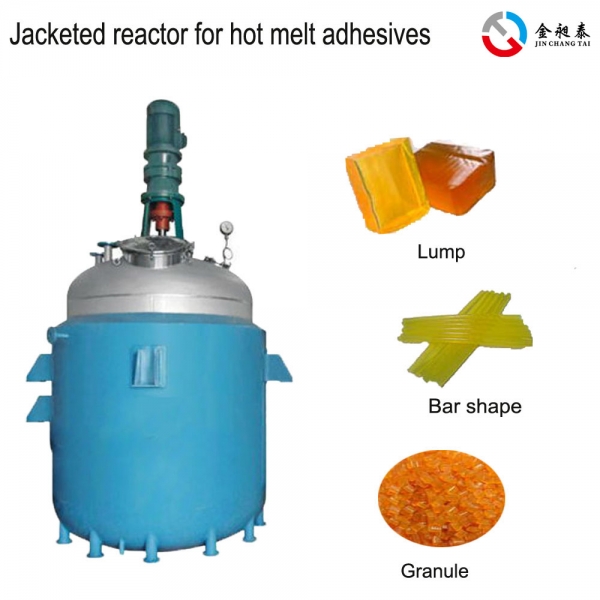

The technical parameter of reactor:
1）Equipment volume: 20-50000L (volume in accordance with the requirements of the
design.)
2 ) Reaction temperature : -20℃~300℃。
3 ) Reaction pressure -0.1~1.6Mpa.
4 ) Equipment Material : SS304 , SS321 , SS316L stainless steel ; Q235-B carbon steel.
5 ) Mixing type: blade type, anchor type, frame type, screw belt type, turbine type,
dispersing disc type, combination type and so on.
6 ) Heating method: the heat conduction oil circulation heating, Electric heating in jacket，
steam heating, hot water heating.
7) Transfer structure: the outer jacket, the outer half tube, inner tube.
Contact information:
If you need to know the detailed equipment configuration, production technology, production
process, please contact us.
Email：[email protected]
Mobile: 0086-181 3837 3963(WhatsApp, Wechat)
Address: Donglian Jincheng Industrial Zone, Danzao Town, Nanhai, Foshan, Guangdong, China.
