JCT hot melt adhesive production line

1、Hot melt adhesive Production line characteristic:

1）The stick shape hot melt adhesive production line of our company use two extruderes work together. it can use to make all kinds of stick hot melt adhesive., with good mixing effect,quality stable, stick adhesive uniformity,product bright and transparency is very good..

2）24 hours of continuous manufacture. High quantity and high efficiency.

3）Extruder machine adopts frequency control, automatic temperature control, rapid replacement of die head, water cooling effect is fast and efficient, automatic cutting.

4）Through the water cooling machine, the cooling water temperature maintained at 5-10 degrees C, improve the cooling effect and production efficiency.

2、The configuration of hot melt adhesive production line（Machinery size and quantity according the output to design）：

1）Materia mixing tank 1set

2）Screw conveyor 1set

3）Screw extruder（1）（Heating, plastic）1set（or more than one set）

4）Screw extruder（2）（Cooling, molding）1set（or more than one set）

5）Water cooling tank 1 set

6）Cooling water machine

7）Full automatic traction and cutting machine 1 set

3、Production proccess (production technology)

1）According the formula to weighing the raw material, and then adding into the reaction kettle,heating to melt raw material,fully mixing.

2）Moving the material into screw extruder through the screw conveyor, heating ,plastic;Adjust the heating temperature and the speed of screw extruder according to different products.(Frequency converter control)

3）Moving heated and plastic material into the screw extruder. Cooling and extrusion molding, according to the different types of plastic, choose different extrusion speed。

4）Extruder to hot melt adhesive through an extrusion head extrusion hole squeeze into the water tank, hot melt adhesive meets cooling water immediately setting. The speed of the glue stick in the water tank by extruder extrusion speed control. Synchronous traction speed and extrusion speed of extruder.

5）Adjust the extrusion speed,cooling rate, traction speed,to control the size of the adhesive stick.

6）Choose the suitable length of the adhesive stick ,cut off them and package.

4、FAQ about reactive hot melt adhesives production line:

Q:How many shape of reactive hot melt adhesives?

A:The hot melt adhesive can be divided from product shape:lump,granular,bar and powder.

Q:What is the heating way of hot melt adhesives?

A:Jacket electric heating, electric heating oil, oil furnace (oil, gas).

Q:How about the temperature of HTF and inner kettle materials?

A:HTF temperature control 160-200, and inner kettle materials will control 130-160.

Q:How long does the reactor and kneader for hot melt adhesives manufacture in a batch?

A::Reactor produce hot melt adhesives about 4-5 hours /batch, kneading machine production of hot melt adhesive is about 2-3 hours /batch.

The hot melt adhesive application:

1) Package: carton boxes, food packaging;

2) Hygiene products: diapers, sanitary napkins and so on.

3) Binding books: books wireless binding;

4) Wood furniture: plywood, wooden floor mosaic, furniture stick;

5) Automotive: lights, glass, filter device, interior, etc;

6) Textile products: adhesive, printing, adhesive;

7) Reflective material: traffic signs, warning protective clothing.

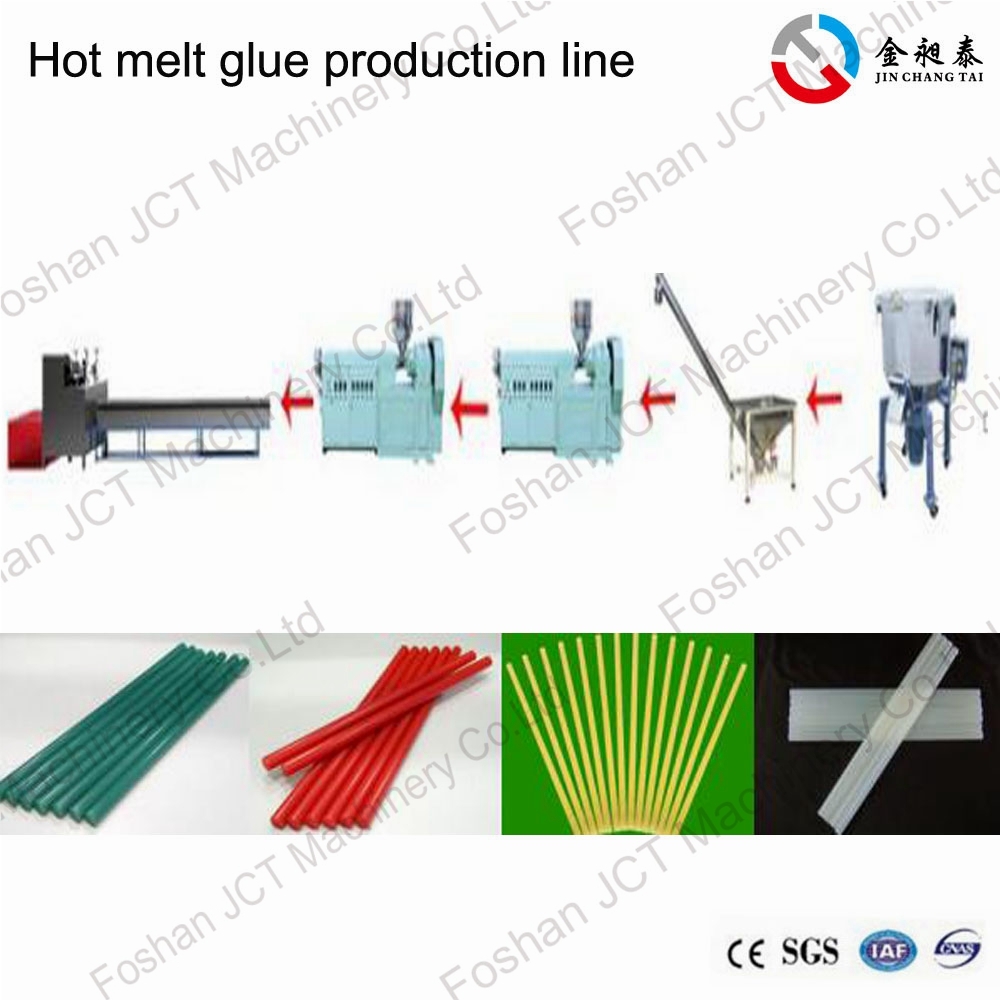

The drawing of JCT hot melt adhesive production line:

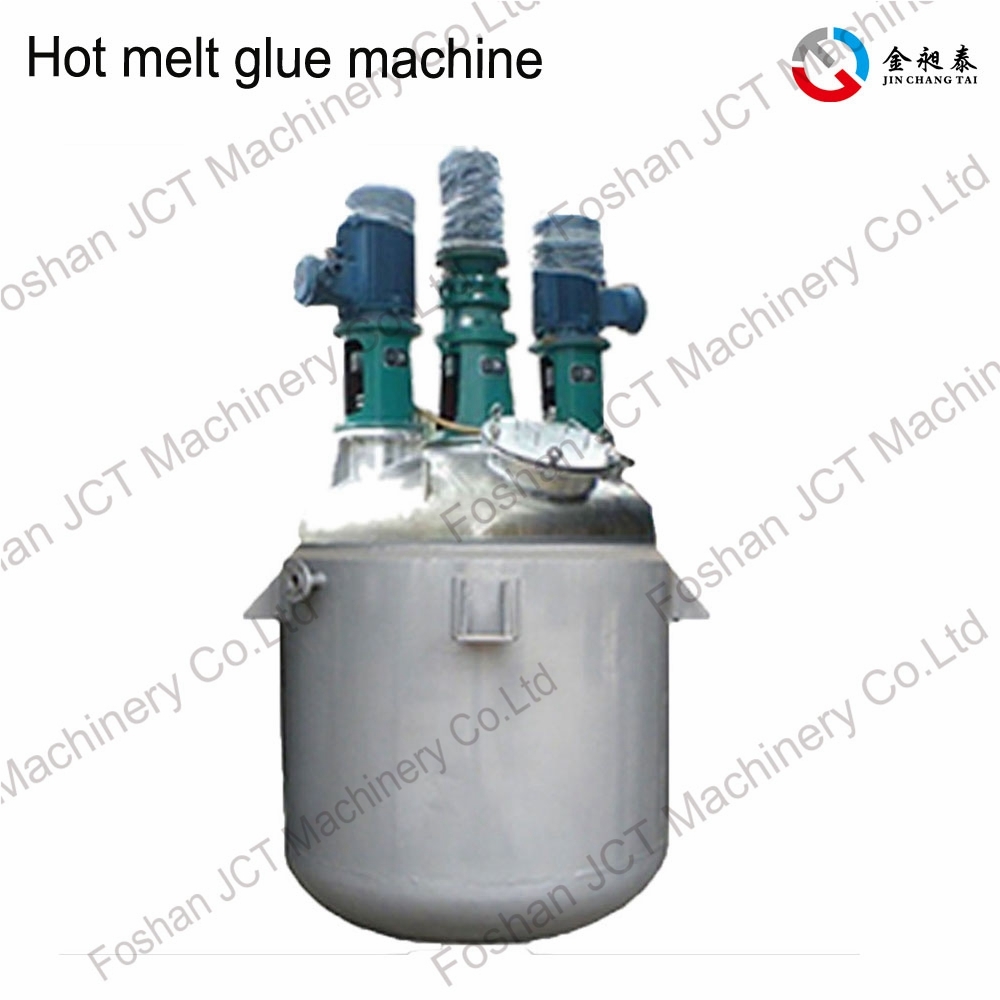

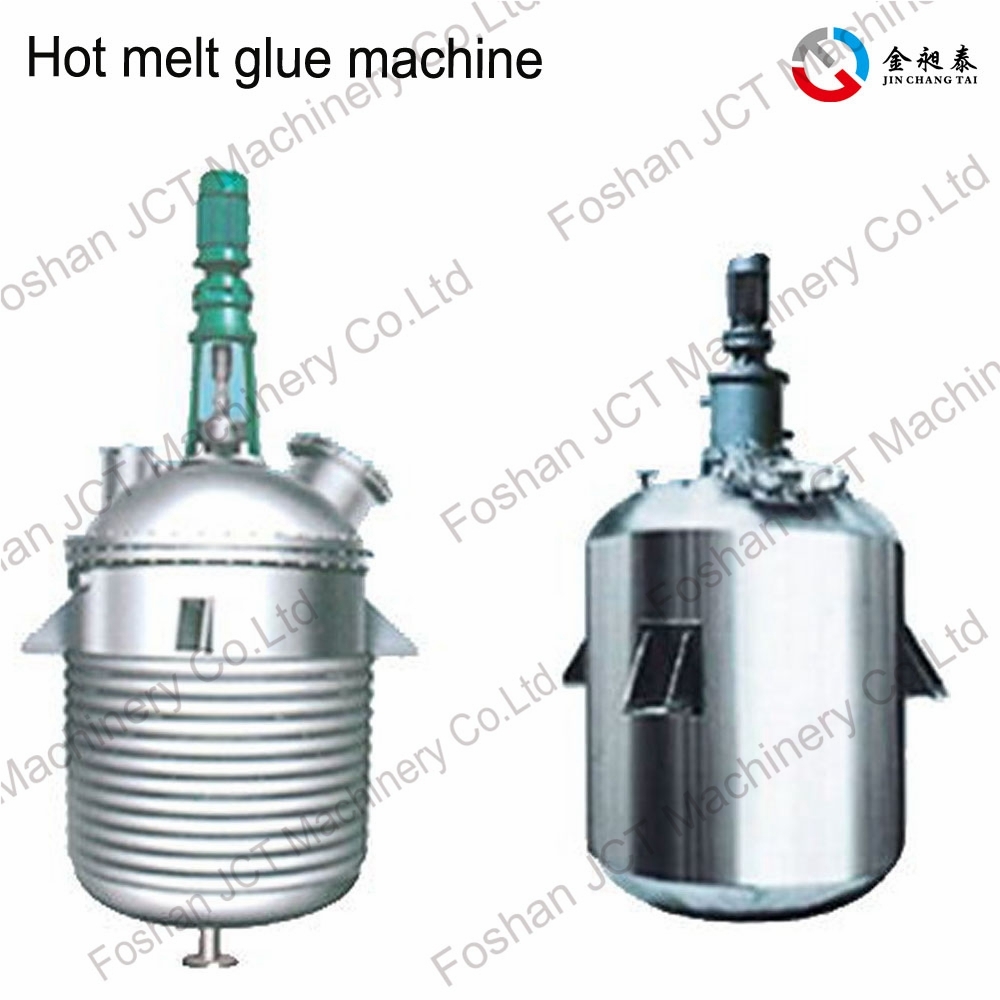

The technical parameter of reactor:

1）Equipment volume: 20-50000L (volume in accordance with the requirements of the

design.)

2 ) Reaction temperature : -20℃~300℃。

3 ) Reaction pressure -0.1~1.6Mpa.

4 ) Equipment Material : SS304 , SS321 , SS316L stainless steel ; Q235-B carbon steel.

5 ) Mixing type: blade type, anchor type, frame type, screw belt type, turbine type,

dispersing disc type, combination type and so on.

6 ) Heating method: the heat conduction oil circulation heating, Electric heating in jacket，

steam heating, hot water heating.

7) Transfer structure: the outer jacket, the outer half tube, inner tube.

Contact information:

If you need to know the detailed equipment configuration, production technology, production
process, please contact us.

Email：[email protected]

Mobile: 0086-181 3837 3963(WhatsApp, Wechat)

Address: Donglian Jincheng Industrial Zone, Danzao Town, Nanhai, Foshan, Guangdong, China.
