The colored hot melt glue sticks production line

1、The colored hot melt glue sticks production line characteristic:

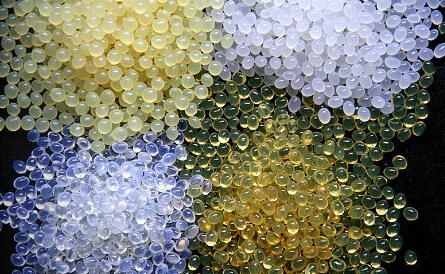

1）The hot melt glue production line of our company uses reaction kettle and extruder machinery. It can use to make all kinds of granule hot melt adhesive., with good mixing effect,quality stable, the granule shape can be designed according difference need.

2) It can manufacture with large capacity machinery and 24 hours of continuous manufacture. High quantity and high efficiency.

3）Raw material can be fully mixed and fully plasticized in the reaction kettle, to sure the quality of the adhesive. Reaction kettle can be used to produce various requirements and high quality hot melt adhesive

4）Through the cold water machine, the cooling water temperature maintained at 5-10 degrees C, improve the cooling effect and production efficiency.

2、The configuration of hot melt adhesive production line （Machinery size and quantity according the output to design）

Melt reaction kettle 1set

2）Material storage kettle 1set

3）High viscosity discharge pump 1set

4）Filter system 1 set

5）Heating system 1set

6）Extrusion forming machine 1set (can be design according your requirement)

7）cooling tank 1set

8）cooling-water machine 1set

9）Full automatic traction and cutting machine 1 set (or more sets)

10）Vibration sieve 1 set (or more sets)

11）cyclone separator teo sets (or more sets)

3、Production proccess (production technology)

1）According the formula to weighing the raw material, and then adding into the reaction kettle,heating to melt raw material,fully mixing.

2）Moving the melted raw material into the filter,and the into the material storage kettle, cooling the material into a certain temperature,and maintain the temperature

3）Moving the storage kettle material into extruder . According the type of the adhesive to choose the extruder speed

4）Extruder to hot melt adhesive through an extrusion head extrusion hole squeeze into the water tank, hot melt adhesive meets cooling water immediately setting. The speed of the glue stick in the water tank by extruder extrusion speed control. Synchronous traction speed and extrusion speed of extruder.

5）Adjust the extrusion speed, cooling rate, traction speed, to control the diameter of the adhesive stick.

6）Choose the suitable length of the adhesive granule ,cut off them and package.

7）Moving the adhesive granule to vibration sieve for dehydration, then to cyclone further dehydration, and then packaged.

The hot melt adhesive application:

1) Package: carton boxes, food packaging;

2) Hygiene products: diapers, sanitary napkins and so on.

3) Binding books: books wireless binding;

4) Wood furniture: plywood, wooden floor mosaic, furniture stick;

5) Automotive: lights, glass, filter device, interior, etc;

6) Textile products: adhesive, printing, adhesive;

7) Reflective material: traffic signs, warning protective clothing.

The drawing of colored hot melt glue sticks production line:

The technical parameter of reactor:

1）Equipment volume: 20-50000L (volume in accordance with the requirements of the

design.)

2 ) Reaction temperature : -20℃~300℃。

3 ) Reaction pressure -0.1~1.6Mpa.

4 ) Equipment Material : SS304 , SS321 , SS316L stainless steel ; Q235-B carbon steel.

5 ) Mixing type: blade type, anchor type, frame type, screw belt type, turbine type,

dispersing disc type, combination type and so on.

6 ) Heating method: the heat conduction oil circulation heating, Electric heating in jacket，

steam heating, hot water heating.

7) Transfer structure: the outer jacket, the outer half tube, inner tube.

Contact information:

If you need to know the detailed equipment configuration, production technology, production
process, please contact us.
