JCT reactive hot melt glue process

1

1、The reactive hot melt glue glue production line characteristic:

1）The hot melt glue production line of our company uses reaction kettle and extruder machinery. It can use to make all kinds of granule hot melt adhesive., with good mixing effect,quality stable, the granule shape can be designed according difference need.

2) It can manufacture with large capacity machinery and 24 hours of continuous manufacture. High quantity and high efficiency.

3）Raw material can be fully mixed and fully plasticized in the reaction kettle, to sure the quality of the adhesive. Reaction kettle can be used to produce various requirements and high quality hot melt adhesive

4）Through the cold water machine, the cooling water temperature maintained at 5-10 degrees C, improve the cooling effect and production efficiency.

2. Three forms of reactive hot melt glue:

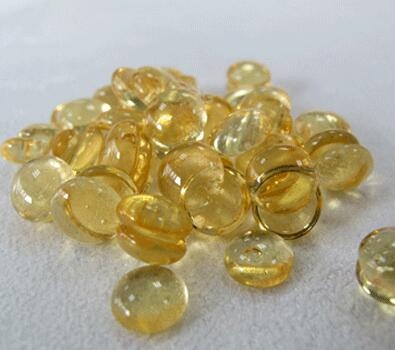

Granule

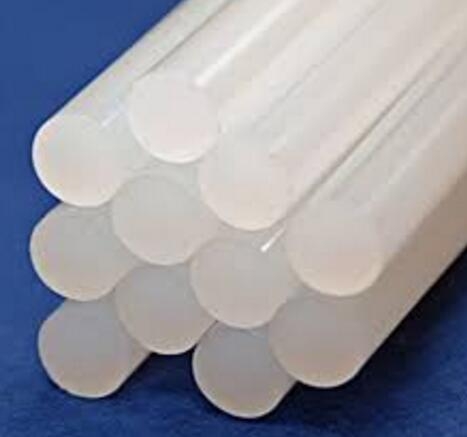

Strip

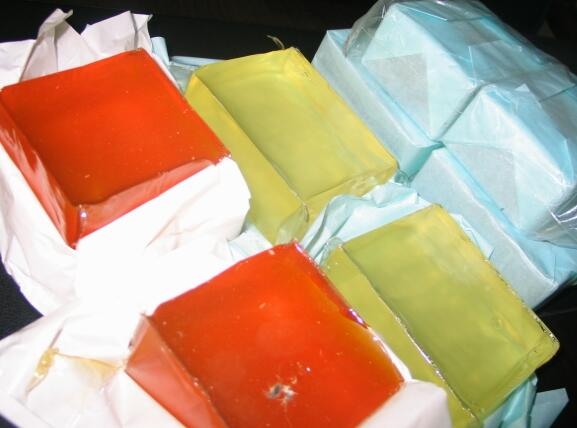

Lump

3.The configuration of hot melt adhesive production line （Machinery size and quantity according the output to design）

1 ) Melt reaction kettle 1set

2）Material storage kettle 1set

3）High viscosity discharge pump 1set

4）Filter system 1 set

5）Heating system 1set

6）Extrusion forming machine 1set (Can be design according your requirement)

7）cooling tank 1set

8）cooling-water machine 1set

9）Full automatic traction and cutting machine 1 set (or more sets)

10）Vibration sieve 1 set (or more sets)

11）cyclone separator two sets (or more sets)

4. FAQ of reactive hot melt glue process:

Question 1: Why does the reactive hot melt glue production line be equipped with vacuum system?
Answer 1: 1).The vacuum can suck the liquid material;
2)Remove the bubble;
3)Take out of the solvent with un-reactive condition.



Question 2: What is the reactive hot melt glue used for?

Answer 2: The reactive hot melt glue is widely used for package,Hygiene products,Binding books,Wood furniture, automotive: lights and so on.

Question 3: How many shapes of reactive do the hot melt glue have?

Answer 3: It can be divided into three shapes, they are strip, lump and granule.

Question 4: Would you tell me about the heating method of reactive hot melt glue reactor?

Answer 4: Jacket electric heating, electric heating oil, oil furnace (oil, gas) etc.

Question 5: What the temperature control in heating oil and inner kettle reaction material?

Answer 5: The temperature will control with heating oil at 160-200 degrees, and 130-160 for inner kettle reaction material

JCT----- Your best partner!

The reactive hot melt glue application:

1) Package: carton boxes, food packaging;

2) Hygiene products: diapers, sanitary napkins and so on.

3) Binding books: books wireless binding;

4) Wood furniture: plywood, wooden floor mosaic, furniture stick;

5) Automotive: lights, glass, filter device, interior, etc;

6) Textile products: adhesive, printing, adhesive;

7) Reflective material: traffic signs, warning protective clothing.

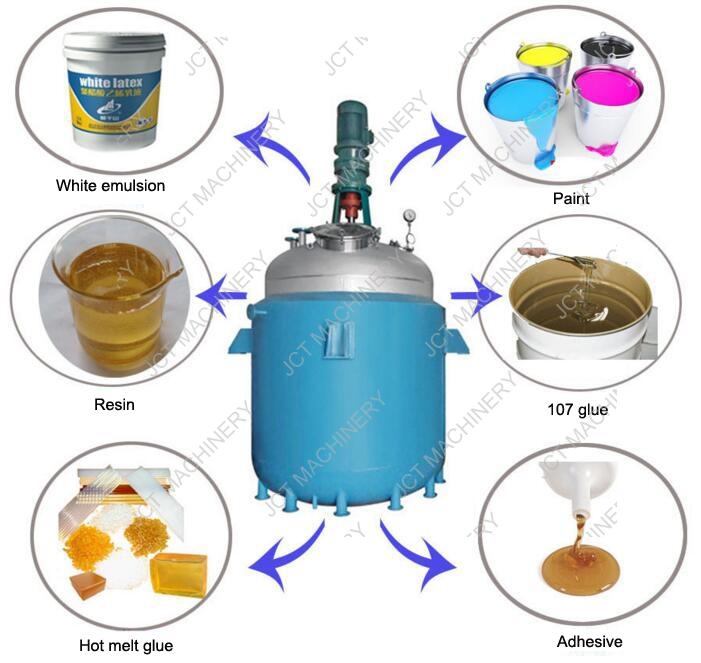

The application of reactive hot melt glue production equipment:

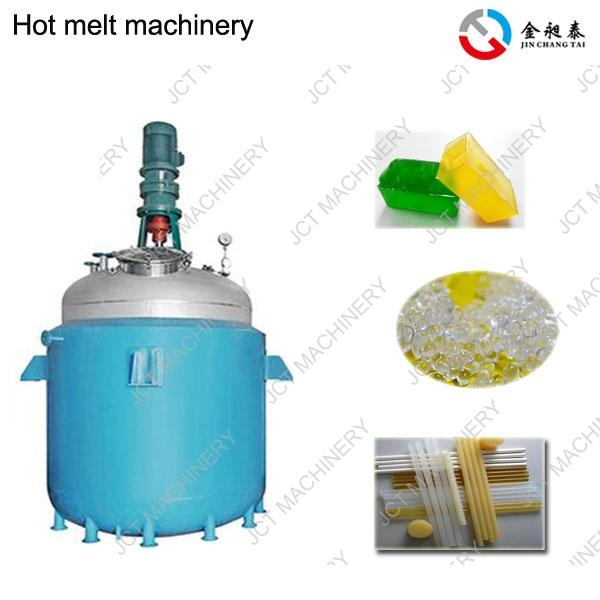

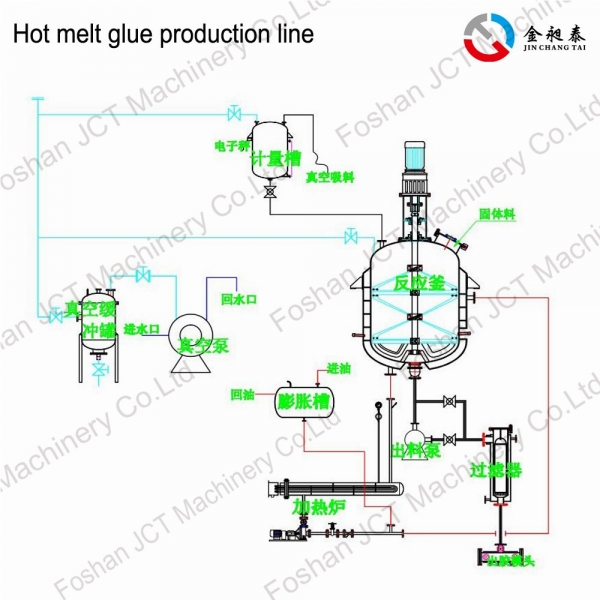

The drawing of reactive hot melt glue production line:

1.The technical parameter of reactor:

1）Equipment volume: 20-50000L (volume in accordance with the requirements of the

design.)

2 ) Reaction temperature : -20℃~300℃。

3 ) Reaction pressure -0.1~1.6Mpa.

4 ) Equipment Material : SS304 , SS321 , SS316L stainless steel ; Q235-B carbon steel.

5 ) Mixing type: blade type, anchor type, frame type, screw belt type, turbine type,dispersing disc type, combination type and so on.

6 ) Heating method: the heat conduction oil circulation heating, Electric heating in jacket，steam heating, hot water heating.

7) Transfer structure: the outer jacket, the outer half tube, inner tube.

2.The Motor Power of reactor( choice of reactive hot melt glue process equipment):

500L: 11-15KW-6P

1000L: 15-18.5KW-6P

1300L: 18.5-22KW-6P

1600L: 18.5-22KW-6P

2300L: 22-30KW-6P

2700L: 30-37KW-6P

3500L: 37-45KW-6P

4200L: 45-55KW-6P

5500L: 55KW-6P

Contact information:

If you need to know the detailed equipment configuration, production technology, production
process, please contact us.
