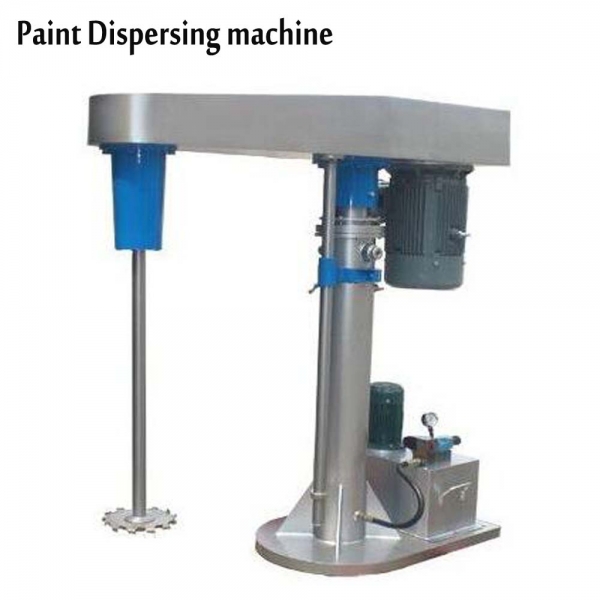

A. The introduction of paint mixing machine

Paint dispersion machine is a kind of mixing machine, high-speed stirrer (disc-serrated stirrer) can make a strong local turbulence,and has a strong dispersing emulsifying effect towards the materials,so for this type of high-speed mixer, it\'s also call dispersing machine.Dispersing machine is divided into lift disperser type and dispering kettle type. According to lifting mode of lift dispersion machine, which can be divided into: hydraulic lifting dispersion machine, pneumatic lift disperser, hand movements dispersing machine.

B.The Working characteristics:

1.The strong centrifugal force can fill the narrow and precious gap, by centrifugal extrusion, hydraulic friction, impact and other integrated hydraulic force, the initial material is dispersed at last.

2.The rotor of dispersing machine high-speed rotation is to generate at least 15m / s or more linear speed.the materials will get dispersing and broken sufficiently after intense hydraulic shear, friction, tearing collision effects, and through a high-speed injection from the stator slots.

3.High-speed disperser material continuously emitted from the radial direction,and change the flow direction between materials and inner container wall resistance.At the same time,under the effect of axis to suction force, will complete the dispersion process.

Paint mixing machine is a professional dispersion machine for paint, ink,paste, dye food, beverage,coating etc.
