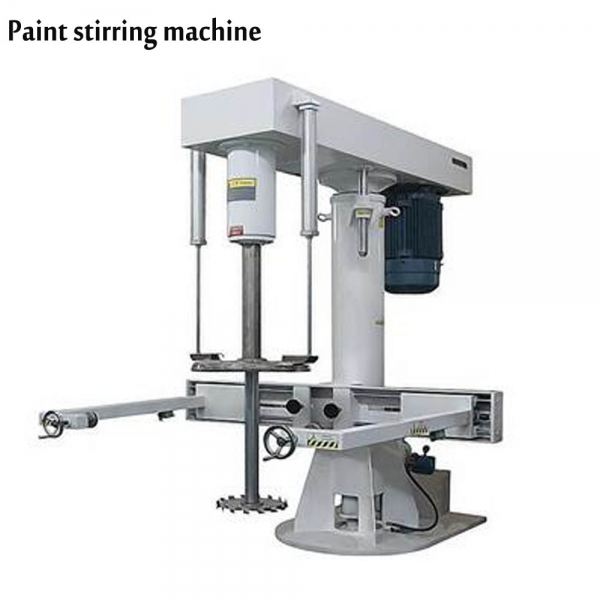

paint mixing machine | High shear paint disperser mixture machine

high shear disperser

A. The introduction of high shear disperser:

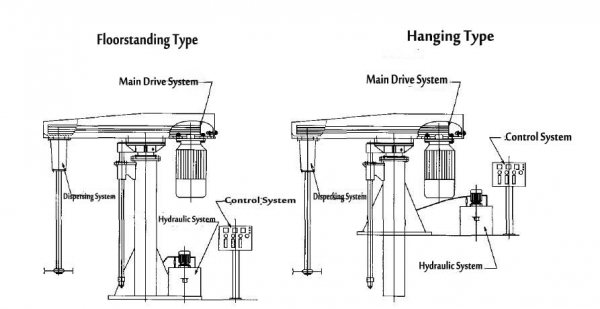

Paint dispersion machine is a kind of mixing machine, high-speed stirrer (disc-serrated stirrer) can make a strong local turbulence,and has a strong dispersing emulsifying effect towards the materials,so for this type of high-speed mixer, it\'s also call dispersing machine.Dispersing machine is divided into lift disperser type and dispering kettle type. According to lifting mode of lift dispersion machine, which can be divided into: hydraulic lifting dispersion machine, pneumatic lift disperser, hand movements dispersing machine. high shear disperser

B. The Working characteristics:

high shear disperser

1.The strong centrifugal force can fill the narrow and precious gap, by centrifugal extrusion, hydraulic friction, impact and other integrated hydraulic force, the initial material is dispersed at last.

2.The rotor of dispersing machine high-speed rotation is to generate at least 15m / s or more linear speed.the materials will get dispersing and broken sufficiently after intense hydraulic shear, friction, tearing collision effects, and through a high-speed injection from the stator slots.

3.High-speed disperser material continuously emitted from the radial direction,and change the flow direction between materials and inner container wall resistance.At the same time,under the effect of axis to suction force, will complete the dispersion process. paint mixing machine

High shear paint disperser mixture machine has a strong and high shear function for liquid-solid materials,such as paint, paste, food, cream, ink, dyes and other industrials.

paint mixture machine
