Polyester Resin Reactor | JCT Machinery

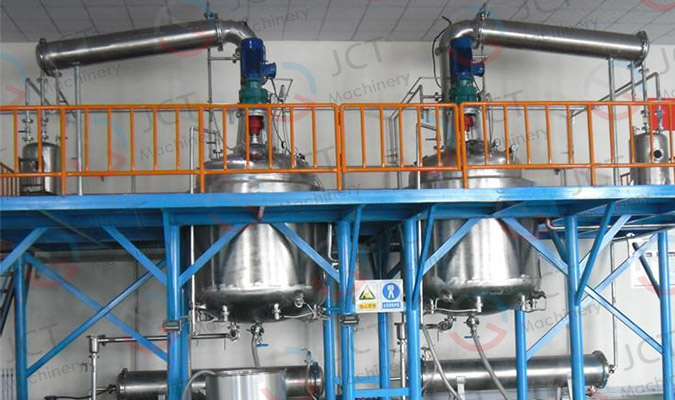

What is polyester resin reactor?

1. Kettle Body

Polyester resin reactor is usually made of stainless steel or alloy materials, with good corrosion resistance and high temperature resistance, and can withstand the high temperature and chemical reaction generated in the polyesterification reaction.

2. Stirring Device

The stirring device is usually composed of paddles, impellers or propellers, which are driven by electric motors to rotate to ensure uniform mixing of the reaction materials.

3. Heating and Cooling System

Polyester resin reactor is usually equipped with heating systems (such as electric heating, steam heating or hot oil heating, etc.) and cooling systems to control the temperature during the reaction.

4. Vacuum System

During the reaction process, the vacuum system is used to remove water vapor or other volatile by-products produced by the reaction. The vacuum system is usually composed of a vacuum pump, a condenser, an exhaust pipe, etc.

5. Temperature and Pressure Control System

Polyester resin reactor is equipped with a temperature sensor, a pressure gauge and a control valve to ensure the stability of temperature and pressure during the reaction to ensure the smooth progress of the reaction.

6. Liquid Level Control System

During the reaction process, liquid level monitoring is very important. The liquid level control system ensures that the height of the liquid in polyester resin reactor is appropriate to avoid affecting the reaction effect due to too high or too low liquid level.

7. Discharge system

Polyester resin reactor is equipped with a discharge system to discharge the by-products in the reaction process to the outside or for further treatment.

Polyester Resin Reactor Working Principle

The working principle of polyester resin reactor is mainly based on the polyesterification reaction at high temperature, which usually involves the reaction of polyols and polyacids under the action of certain catalysts to produce polyesters. Polyester resin reactor provides an appropriate reaction environment (temperature, stirring, vacuum, etc.) to ensure the smooth progress of the reaction.

JCT Machinery is professional in making polyester resin reactor, and we have CE certification for reactor. JCT'reactor is your best choice. Get a quote for factory price reactor through: +86-181 3837 3963 (Whatsapp, Wechat) or [email protected].
