Customizable Lab Kneader Mixer

JCT Machinery can produce both small-capacity lab kneader mixer and large-scale industrial kneader mixer.

Lab Kneader Mixer Technical Parameter

Equipment volume: 5-5000L, working volume: 60-70%.

Processing capacity of each batch: 3-3000L.

Stirring paddle shape: ∑ type, Z type, strong shear type.

Discharging mode: hydraulic turning cylinder discharging, screw extrusion discharging, bottom material pump discharging.

Drive configuration power: 1.1KW-400KW.

Heating mode: electric heating in jacket, circulating heating of heat transfer oil, steam heating.

Cooling mode: cold oil or cold water circulating cooling.

Equipment material: SS316L, SS321, SS304, Q235-B carbon steel, other special materials.

Working pressure: -0.1~0.6MPa.

Working temperature: -20~300℃.

**The specific configuration and technical parameters of the kneader mixer are based on the product performance.

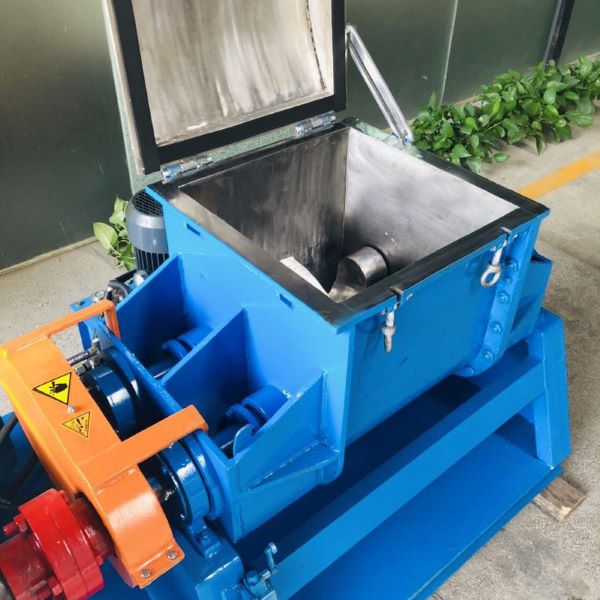

kneader mixer

The lab kneader mixer is very suitable for mixing, kneading and shearing of substances with high viscosity, ultra-hihgh viscosity, high consistency and high elasticity. Lab kneader mixer can be used in sealant, high-temperature silicone rubber, liquid silicone rubber, BMC, CMC, glue, ink, dye, medicine, food, flame retardant, water-soluble ammonium polyphosphate, rubber and plastic industries.

Lab kneader mixer manufactured by JCT Machinery has not only high requirements for product quality, but also strict requirements for safety protection, and has obtained CE certification.

If the purchaser needs to know the specific, detailed equipment configuration, technical parameters and supporting production equipment, you can contact us. We will arrange a team of professional technical engineers and sales personnel to communicate and negotiate with you, and provide a targeted and personalized design scheme according to the specific products and output you need to produce.
