Hot melt gluing process machine





A.The Hot melt gluing process machine(Hot melt gluing process line) characteristic：



1）The hot melt glue production line of our company uses reaction kettle and extruder machinery. It can use to make all kinds of stick hot melt adhesive, with good mixing effect,quality stable, stick adhesive uniformity,product bright and transparency is very good.
2）It can manufacture with large capacity machinery and 24 hours of continuous manufacture. High quantity and high efficiency.
3）Raw material can be fully mixed and fully plasticized in the reaction kettle, to sure the quality of the adhesive. Reaction kettle can be used to produce various requirements and high quality hot melt adhesive.







A.The Hot melt gluing process machine(Hot melt gluing process line) characteristic：

1）The hot melt glue production line of our company uses reaction kettle and extruder machinery. It can use to make all kinds of stick hot melt adhesive, with good mixing effect,quality stable, stick adhesive uniformity,product bright and transparency is very good.
2）It can manufacture with large capacity machinery and 24 hours of continuous manufacture. High quantity and high efficiency.
3）Raw material can be fully mixed and fully plasticized in the reaction kettle, to sure the quality of the adhesive. Reaction kettle can be used to produce various requirements and high quality hot melt adhesive

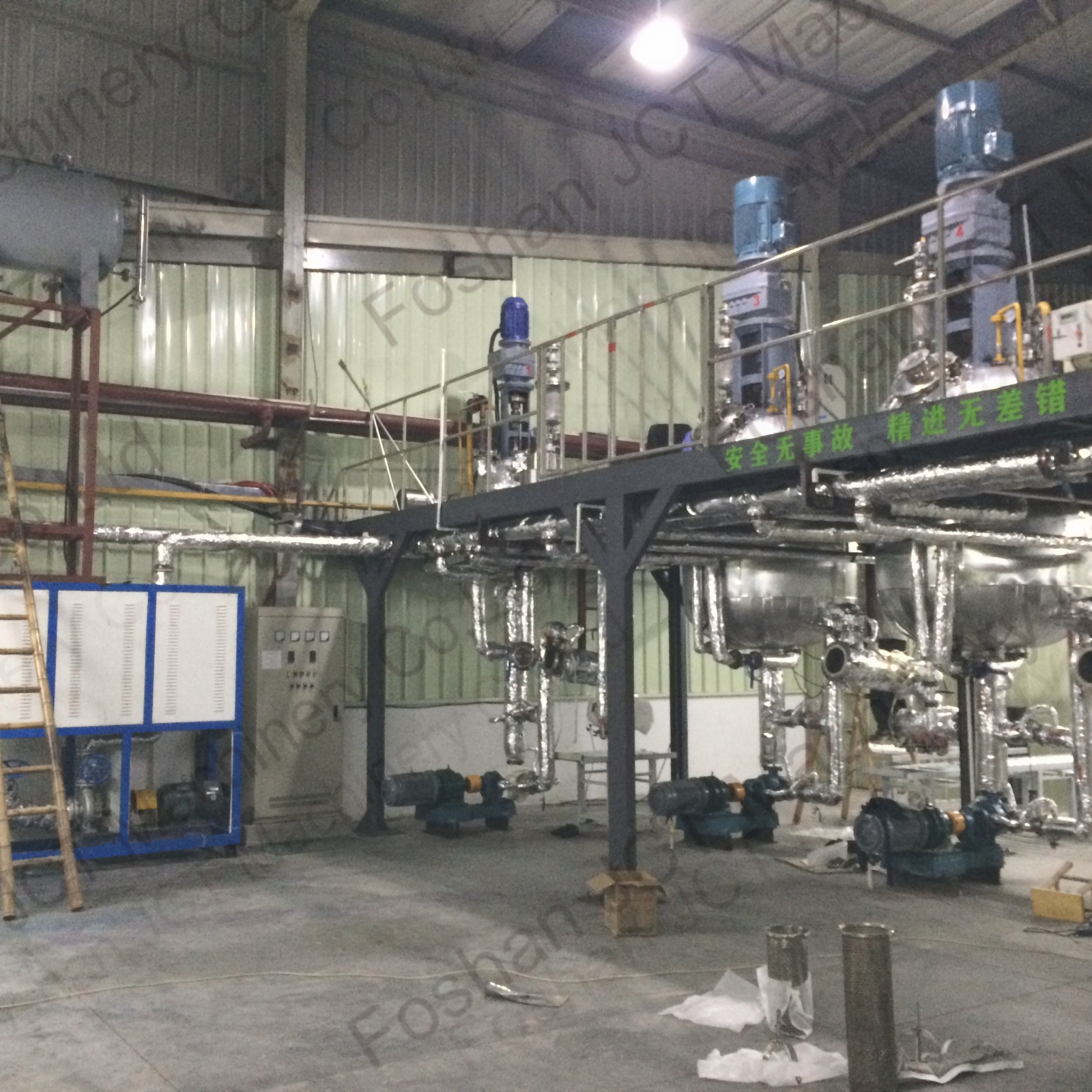

B.The configuration of Hot melt gluing process machine （Machinery size and quantity according the output to design）
1）Melt reaction kettle 1set
2）Material storage kettle 1set
3）High viscosity discharge pump 1set
4）Filter system 1 set
5）Heating system 1set





C. Production proccess (Production technology)
1）According the formula to weighing the raw material, and then adding into the reaction kettle,heating to melt raw material,fully mixing.
2）Moving the melted raw material into the filter,and the into the material storage kettle, cooling the material into a certain temperature,and maintain the temperature
3）Moving the storage kettle material into extruder. According the type of the adhesive to choose the extruder speed
(welcome to get more information in Foshan JCT Machinery Co.,Ltd)



JCT Machinery Co.,Ltd, you trustful business partner!



The Hot melt gluing process machine application:

1) Package: carton boxes, food packaging;

2) Hygiene products: diapers, sanitary napkins and so on.

3) Binding books: books wireless binding;

4) Wood furniture: plywood, wooden floor mosaic, furniture stick;

5) Automotive: lights, glass, filter device, interior, etc;

6) Textile products: adhesive, printing, adhesive;

7) Reflective material: traffic signs, warning protective clothing.

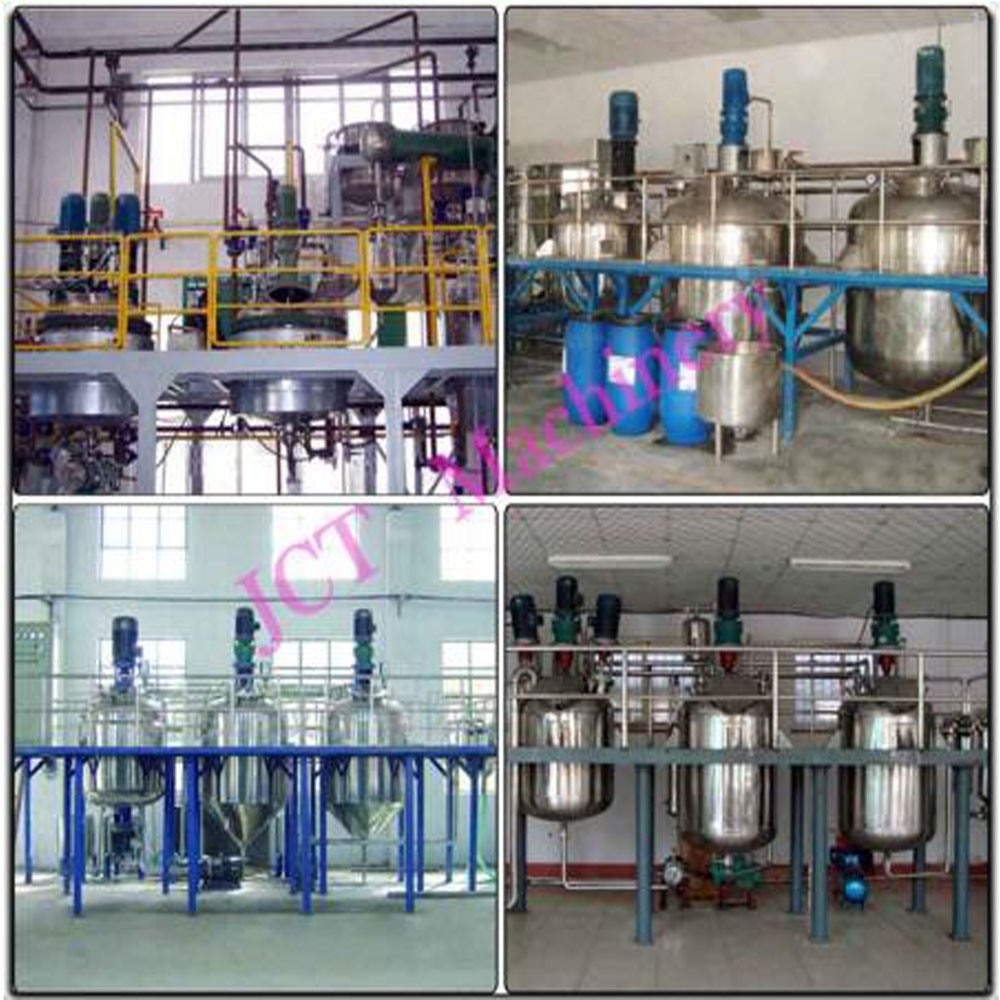

The application of Hot melt gluing process machine production equipment:











The technial parameter of Hot melt main gluing process machine ---reactor:



1）Equipment volume: 20-50000L (volume in accordance with the requirements of the

design.)

2 ) Reaction temperature : -20℃~300℃。

3 ) Reaction pressure -0.1~1.6Mpa.

4 ) Equipment Material : SS304 , SS321 , SS316L stainless steel ; Q235-B carbon steel.

5 ) Mixing type: blade type, anchor type, frame type, screw belt type, turbine type,

dispersing disc type, combination type and so on.

6 ) Heating method: the heat conduction oil circulation heating, Electric heating in jacket，



steam heating, hot water heating.

7) Transfer structure: the outer jacket, the outer half tube, inner tube.
